GAX7200AN - EXTENSION 200MM 7X7MM DIRECT/DOOR COUP

Why Choose the GAX7200AN?

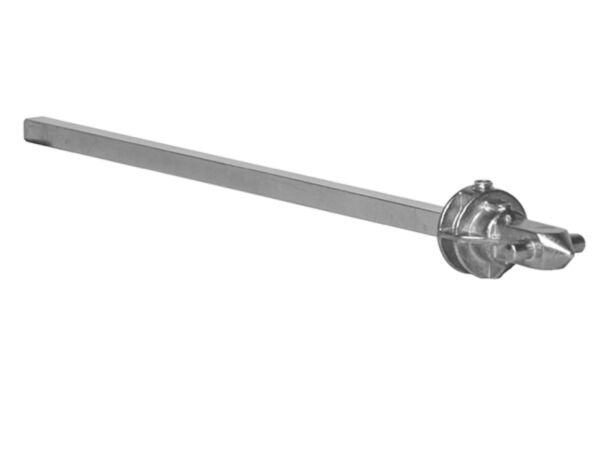

Lovato GAX7200AN is a shaft extension accessory designed for door-coupling handles and mechanical coupling systems. It extends the reach between the handle and the switchgear, using a 7mm square (0.3") profile over a 200mm length. The GAX7200AN integrates with handles GAX66N and GAX66NB, and the mechanical coupling system GAX6001, providing a precise, reliable interface within panel assemblies.

As part of Lovato's accessories range, this shaft extension is specified as "Accessories for" GA030A…, GA063A…GA160A…, GE0160…GE0250 and GE0160T4…GE0250T4. It supports installations requiring conformity to IEC/EN 60947-1 and 60947-3, as well as UL508, UL98 and CSA C22.2. A dependable, sustainability-certified component, it helps ensure accurate handle-to-device coupling across a variety of control and protection assemblies.

Key Benefits

• 200mm length delivers reliable reach between handle and device.
• 7mm square (0.3") shaft profile ensures precise torque transfer.
• Compatible with GAX66N and GAX66NB door-coupling handle sets.
• Works with mechanical coupling system GAX6001 for panel assemblies.
• Specified for GA030A…, GA063A…GA160A…, GE0160…GE0250 ranges.
• Conforms to IEC/EN 60947, UL508, UL98 and CSA C22.2 standards.

Technical Specification

• Type of product: Accessories
• Type of accessories: Shaft extension
• Accessories for: GA030A…, GA063A…GA160A…, GE0160…GE0250, GE0160T4…GE0250T4

What’s Included

• Lovato GAX7200AN shaft extension, 200mm, 7mm square
• Basic manufacturer instructions
• Compliance and certification information
• Protective packaging

Applications

• Extending door-coupling handle linkage for GAX66N and GAX66NB
• Coupling with GAX6001 mechanical linkage in control panels
• Use with GA030A… and GA063A…GA160A… switchgear assemblies
• Interfacing with GE0160…GE0250 and GE0160T4…GE0250T4 devices

Safety note: Install and adjust only when power is isolated. Follow the manufacturer’s instructions and applicable IEC/EN and UL/CSA standards, ensuring correct alignment and compatibility before energising.
