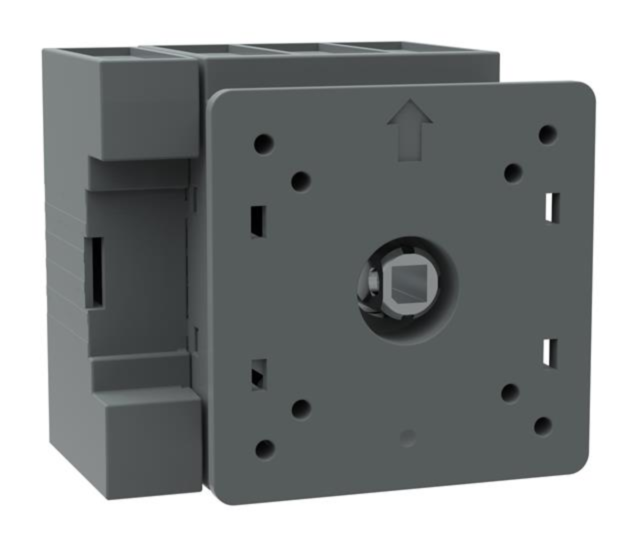

ABB ot63ft4n2 63 amp door mounted isolator 4 pole
MPN: 1SCA105393R1001
Alt. SKU: OT63FT4N2
Special Price
£46.18
£38.48
Regular Price
£71.04
Why Choose the OT63FT4N2 [1SCA105393R1001]
4-pole, front-operated, door-mounted switch-disconnector designed for non-fusible isolation. Features protected clamp terminals for secure wiring connections. Please note, handle is supplied separately.
Technical Specification
- Function: 4-pole, front operated, door mounted switch-disconnector, non-fusible, with simultaneous switching on fourth pole.
- Rated Operational Voltage: Up to 750 V main circuit.
- Rated Current: 63 A (AC-21A, AC-22A), 63 A (AC-23A at 380-415 V), 45 A (AC-23A at 500 V), 20 A (AC-23A at 690 V).
- Rated Insulation Voltage (Ui): 750 V (IEC/EN 60664-1).
- Rated Impulse Withstand Voltage (Uimp): 8 kV.
- Degree of Protection: Front IP20.
- Terminal Type and Size Range: Screw terminals for copper conductors from 1.5 to 35 mm², solid or flexible with ferrule.
- Mechanical Durability: 20,000 operating cycles.
- Mounting: Door mounting, front operated.
- Power Loss per Pole: 2.8 W at rated conditions.
Trusted By Customers Worldwide
"Specified by UK panel builders for dependable control." Controls Engineer, UK
Frequently Asked Questions
What is the function of this switch-disconnector?
This product is a 4-pole, front operated, door mounted switch-disconnector designed for non-fusible applications with simultaneous switching on the fourth pole.
What is the rated operational voltage of the switch?
The switch can handle a rated operational voltage of up to 750 V in the main circuit.
What is the cable capacity for the terminals?
The screw terminals accommodate copper conductors ranging from 1.5 to 35 mm², suitable for both solid and flexible cables with ferrules.
How is the switch mounted?
This switch is designed for door mounting and is operated from the front.
What is the degree of protection for this product?
The degree of protection is IP20 for the front of the switch.
What is the mechanical durability of the switch?
The switch has a mechanical durability of 20,000 operating cycles.
What standards and approvals does this product conform to?
See the manufacturer's data sheet for standards and approvals.
| Manufacturer Part Number | 1SCA105393R1001 |
|---|---|
| HS Code | 85365080 |
| Amperage | 63A |
| Number of Poles | 4 Pole |
| Country of Manufacture | Finland |
| Manufacturer | ABB |
| Mount Type | Door mounted |
| Alternative Product SKU | OT63FT4N2 |
| Barcode | 6417019393285 |
