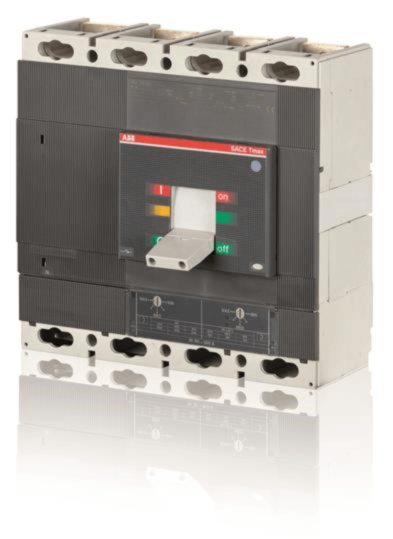

1sda060275r1 t6n 800 pr222ds/p-lsi in=800 4 pole abb mccb
MPN: 1SDA060275R1
Alt. SKU: T6N 800 PR222DS/P-LSI In=800 4p F F
Special Price
£4,138.27
£3,448.56
Regular Price
£6,366.58
Why Choose the Moulded Case Circuit Breaker [1SDA060275R1]
The TMAX T6N 800 fixed four-pole circuit breaker features front-access terminals and a solid-state release mechanism, ensuring precise and reliable protection. Designed for use in AC applications, the PR222DS/P-LSI R 800 model offers robust performance and compatibility with a wide range of electrical systems, making it suitable for industrial and commercial installations requiring high-capacity circuit interruption.
Technical Specification
- Function: Moulded Case Circuit Breaker, four-pole fixed type with solid-state release.
- Rated Current: 800 A.
- Rated Operational Voltage: 690 V AC.
- Rated Impulse Withstand Voltage (Uimp): 8 kV.
- Rated Insulation Voltage (Ui): 1000 V.
- Short-Circuit Breaking Capacity (Ics): Up to 70 kA at 220–230 V AC, decreasing to 15 kA at 690 V AC.
- Ultimate Short-Circuit Breaking Capacity (Icu): Up to 70 kA at 220–230 V AC, 20 kA at 690 V AC.
- Terminal Type: Fixed front terminals.
- Mechanical Durability: 20,000 cycles at 120 operations per hour.
- Electrical Durability: 5,000 cycles at 60 operations per hour.
Trusted By Customers Worldwide
"Specified by UK panel builders for dependable control." Controls Engineer, UK
Frequently Asked Questions
What is the rated current of the C.BREAKER TMAX T6N 800?
The rated current is 800 A.
What is the maximum operational voltage for this circuit breaker?
The maximum rated operational voltage is 690 V AC.
What is the short-circuit breaking capacity of the TMAX T6N 800?
It has a short-circuit breaking capacity of up to 70 kA at 220–230 V AC, decreasing to 15 kA at 690 V AC.
How many mechanical cycles can the circuit breaker endure?
The mechanical durability is rated for 20,000 cycles at 120 operations per hour.
What type of terminals does the C.BREAKER TMAX T6N 800 have?
It features fixed front terminals.
What is the ultimate short-circuit breaking capacity?
The ultimate short-circuit breaking capacity is up to 70 kA at 220–230 V AC and 20 kA at 690 V AC.
What should I refer to for conformity information?
See the manufacturer's data sheet for standards and approvals.
| Manufacturer Part Number | 1SDA060275R1 |
|---|---|
| Barcode | 8015644627379 |
| Manufacturer | ABB |
| Number of Poles | 4 Pole |
| Amperage | 800A |
| Alternative Product SKU | T6N 800 PR222DS/P-LSI In=800 4p F F |
| Product Lead Time | Please contact us for a delivery time |
