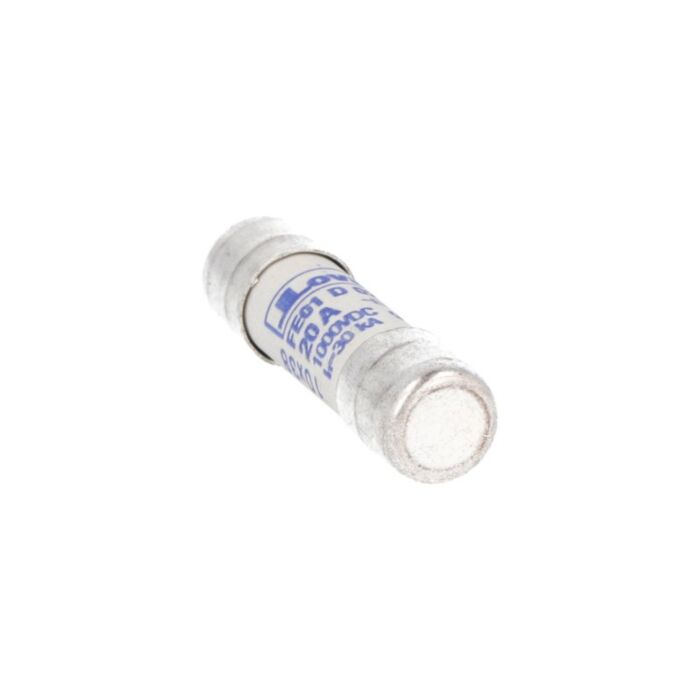

FE01D02000 - CYLINDRICAL FUSE 10X38 GPV 20A

Why Choose the FE01D02000?

Designed for dependable photovoltaic protection, the Lovato FE01D02000 fuse fits 10x38mm holders and safeguards DC circuits up to 1000VDC at 20A. With a 30kA breaking capacity and compliance to IEC/EN 60269-6, this Fuses for PV applications - 10x38mm device suits string and combiner box protection. Compact and lightweight, it offers consistent performance across demanding solar installations.

Built for practical deployment on site, it operates from -20 to +70 °C and maintains performance up to 3000 m altitude. The DC design supports dedicated PV applications and requires no light indicator, simplifying inspection regimes. Backed by IEC compliance and a sustainability certification, its 8 g construction helps minimise weight in dense arrays and within DC distribution enclosures.

Key Benefits

• 30kA breaking capacity at 1000VDC for robust PV fault protection.
• Rated 20A for reliable photovoltaic string and DC circuit safeguarding.
• Compact 10x38mm format suits standard PV fuse holders and combiner boxes.
• DC operating voltage type optimised for solar equipment and distribution.
• Wide -20 to +70 °C operating temperature supports varied UK climates.
• IEC/EN 60269-6 compliance ensures recognised performance and safety benchmarks.
• Lightweight 8 g design reduces load in densely packed enclosures.

Technical Specification

• Product type designation: FE
• Operating voltage type: DC
• Operating temperature: -20 to +70 °C
• Storage temperature: -40 to +80 °C
• Max altitude: 3000 m
• Weight: 8 g

What’s Included

• 1 x Lovato PV fuse, 10x38mm, 20A, 1000VDC (SKU: FE01D02000)
• Product datasheet (digital copy)

Applications

• Photovoltaic string and array circuit protection
• DC combiner box and string box protection
• Inverter DC input protection
• DC distribution within PV balance-of-system
• Rooftop and ground-mount solar installations

Safety note: Always isolate and verify de-energisation of DC circuits before replacement. Use only in correctly rated 10x38mm holders and ensure the fuse ratings match the PV system design and applicable standards.
