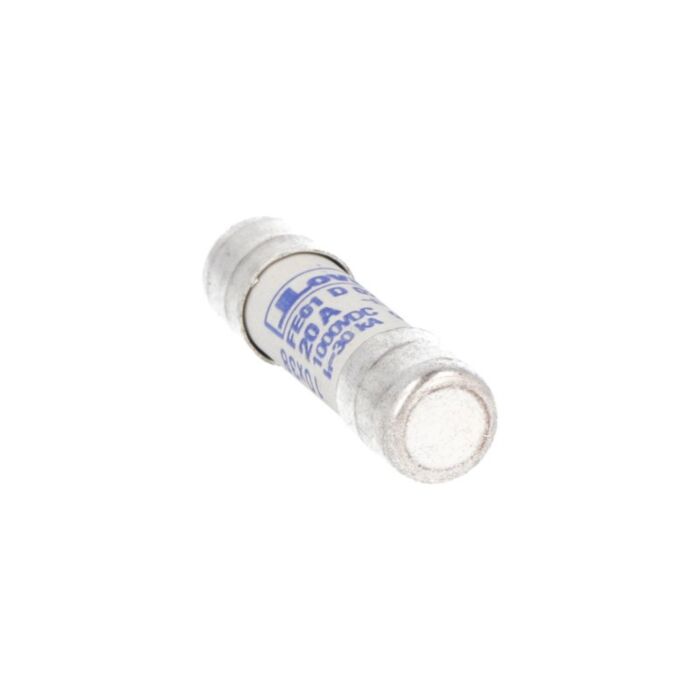

FE01D01200 - CYLINDRICAL FUSE 10X38 GPV 12A
MPN: FE01D01200
Special Price
£20.22
£16.85
Regular Price
£33.70
Why Choose the FE01D01200?
Built for dependable DC protection in solar installations, the Lovato FE01D01200 fuse delivers assured performance in a compact 10x38mm format. Rated 12 A at up to 1000 V DC with a 30 kA breaking capacity, this FE series device is purpose-made for photovoltaic circuits. Compliant with IEC/EN 60269-6, it suits PV strings and combiner applications where fast, reliable overcurrent protection is essential.
Engineered to perform across challenging environments, it operates from -20 to +70 °C and up to 3000 m altitude, with a lightweight 8 g construction. The DC-only design has no light indicator, simplifying integration into standard holders. Backed by IEC compliance and Lovato’s FE designation, it offers a dependable choice for maintaining PV system uptime and safety.
Key Benefits
- 1000 V DC rating for modern photovoltaic string protection
- 12 A current rating matched to PV circuit requirements
- 30 kA DC breaking capacity for high fault interruption safety
- Standard 10x38 mm size for widely available fuse holders
- Operates from -20 to +70 °C for varied site conditions
- Conforms to IEC/EN 60269-6 for assured compliance
- Lightweight 8 g construction aids compact panel layouts
- Suitable for installation up to 3000 m altitude
Technical Specification
- Product type designation: FE
- Operating voltage type: DC
- Operating temperature: -20 to +70 °C
- Storage temperature: -40 to +80 °C
- Max altitude: 3000 m
- Weight: 8 g
What’s Included
- Lovato FE01D01200 PV fuse, 10x38 mm, 12 A, 1000 V DC
- Manufacturer datasheet (downloadable)
- Protective packaging
- Basic installation and safety information
Applications
- Photovoltaic string and array overcurrent protection (DC)
- PV combiner box and DC distribution protection
- Inverter DC input protection within specified ratings
- Maintenance replacement for 10x38 mm PV fuse links
Frequently Asked Questions
Is the FE01D01200 suitable for AC circuits?
No. It is designed for DC operation; Type of operating voltage is DC.
What are the rated voltage and current?
It is rated up to 1000 V DC with an IEC maximum current of 12 A.
What is the breaking capacity?
The DC breaking capacity is 30 kA at 1000 V DC.
Does this fuse have a light indicator?
No, it has no light indicator.
Which standards does it comply with?
It conforms to IEC/EN 60269-6 and meets IEC compliance.
Safety note: Always isolate and verify de-energised DC circuits before installation or replacement. Use only within the stated 12 A and 1000 V DC ratings and in suitable 10x38 mm holders, following IEC/EN 60269-6 and site safety procedures.
| Manufacturer Part Number | FE01D01200 |
|---|---|
| Manufacturer | Lovato |
| HS Code | 85361050 |
| Barcode | 8013975187104 |
