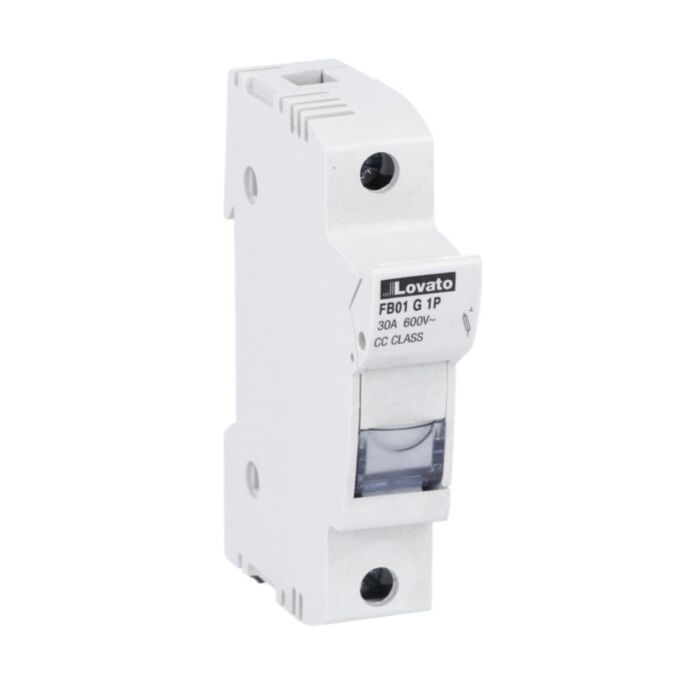

FB01G1P - FUSE HOLDER 1P CC CLASS 1P

Why Choose the FB01G1P?

Lovato’s FB01G1P is a robust 1‑pole fuse holder for 10x38mm and Class CC fuses, engineered for AC circuits and certified to IEC and UL standards. Delivering a 30 A rating with frontal IP20 protection, this compact unit supports projects requiring North American compliance. SKU FB01G1P ensures reliable fuse retention and straightforward wiring in control panels, switchboards and OEM builds where safety, performance and tidy installation matter.

Built on Lovato’s FB platform, this 7 g holder suits demanding environments from −20 to +70 °C and up to 3000 m altitude. A no‑indicator design reduces complexity, while 2.5 Nm max terminal torque supports secure terminations. With IEC/EN and UL/CSA conformity and IP20 front touch protection, it delivers dependable, standards‑aligned protection for AC circuits using 10x38mm cartridges in space‑constrained enclosures.

Key Benefits

• UL and IEC compliant for global and North American projects.
• Accepts 10x38mm and Class CC fuses for flexible sourcing.
• 1-pole AC design with 30 A IEC rated current.
• IP20 frontal protection enhances operator safety during operation.
• Reliable terminations with up to 2.5 Nm tightening torque.
• Wide -20 to +70 °C operating temperature range.
• Lightweight 7 g construction suits compact panels.

Technical Specification

• Product type designation: FB
• Operating voltage type: AC
• Operating temperature: -20 to +70 °C
• Storage temperature: -40 to +80 °C
• Max altitude: 3000 m
• Terminal tightening torque (max): 2.5 Nm
• Weight: 7 g
• IP degree (frontal): IP20

What’s Included

• 1 x Lovato FB01G1P 10x38mm fuse holder (1-pole)
• Manufacturer documentation and certifications (digital)
• Protective packaging for safe transit and storage

Applications

• AC circuit protection using 10x38mm/Class CC fuses
• Industrial control panels and switchboards
• OEM machinery and automation assemblies
• Export builds requiring UL/CSA conformity for North America
• HVAC, pumps and general plant distribution up to 30 A

Safety note: Install and service only when de‑energised by qualified personnel. Use correct 10x38mm/Class CC fuses, observe torque limits and environmental ratings, and follow applicable IEC/UL standards.
