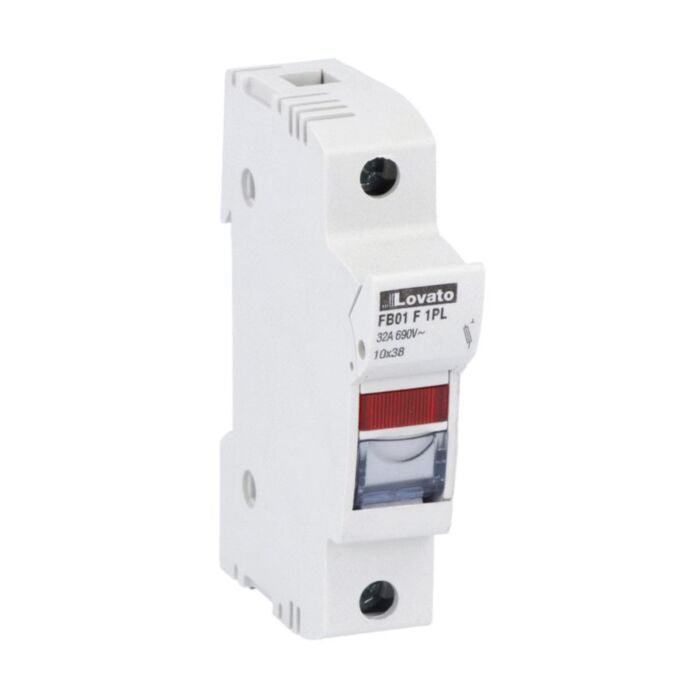

FB01F1PL - FUSE HOLDER 1P 10X38 C/W IND.

Why Choose the FB01F1PL?

Built for reliable AC circuit protection, the Lovato FB01F1PL fuse holder suits 10x38mm fuses and delivers 32A at up to 690VAC in a compact 1P, 1‑module format. This Fuse holders - 10x38mm unit includes a clear status indicator and IP20 frontal protection. UL recognised and CSA certified with IEC compliance, it offers a robust, space‑efficient choice for control panels and distribution assemblies.

Engineered for demanding environments, it operates from -20 to +70 °C, stores from -40 to +80 °C, and is rated for installations up to 3000 m altitude. Secure wiring is supported by a 2.5 Nm terminal tightening torque, while a 65 g build eases handling. Conforms to IEC/EN 60269 and 60947 series, plus UL 4248-1 and CSA C22.2 n°4248.1, supporting compliance across global projects.

Key Benefits

• 32A at 690VAC for dependable AC circuit protection.
• Compatible with standard 10x38mm industrial fuses.
• Single-pole, 1-module design saves valuable panel space.
• Integrated status indicator enables fast visual checks.
• IP20 frontal protection enhances operator safety at the front.
• Wide -20 to +70 °C operating temperature range.
• UL recognised, CSA certified and IEC compliant.
• 2.5 Nm terminal torque for secure, reliable connections.

Technical Specification

• Product type designation: FB
• Operating voltage type: AC
• Operating temperature: -20 to +70 °C
• Storage temperature: -40 to +80 °C
• Max altitude: 3000 m
• Terminal tightening torque (max): 2.5 Nm
• Weight: 65 g
• IP degree (frontal): IP20

What’s Included

• Lovato FB01F1PL 10x38mm fuse holder (1P, 1 module)
• Integrated status indicator
• Manufacturer documentation (datasheet/reference information)
• Original manufacturer packaging

Applications

• AC circuit protection in industrial control panels
• Distribution boards and switchgear assemblies
• OEM machinery requiring 10x38mm fuse protection
• Maintenance and retrofit of single‑pole fuse circuits

Safety note: Install and service only by qualified personnel. Isolate power before work, use correctly rated 10x38mm fuses, tighten terminals to 2.5 Nm, and observe applicable IEC/UL/CSA standards and IP20 limitations.
