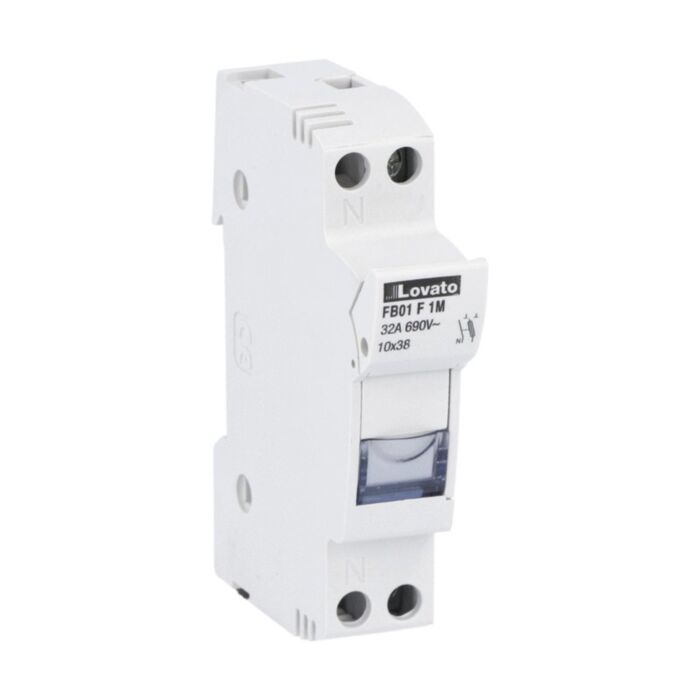

FB01F1M - FUSE HOLDER 1P+N 10X38 1 MODULE

Why Choose the FB01F1M?

The Lovato FB01F1M fuse holder for 10x38mm fuses provides compact, dependable housing for AC protection devices. Rated 32A at 690VAC with a 1P+N configuration, this 1-module unit suits single-phase applications with phase and neutral. With no status indicator, it offers a simple, robust choice for panel builders and OEMs seeking compliant, space-efficient mounting of cartridge fuses in industrial and commercial installations.

Designed for durability, it operates from -20 to +70 °C and tolerates altitudes up to 3000 m. Frontal IP20 protection enhances user safety, while a maximum terminal tightening torque of 2.5 Nm supports secure terminations. Backed by IEC/EN 60269 and 60947 series, plus UL and CSA conformity, this Lovato holder integrates reliably where clear, standards-aligned fuse management is required.

Key Benefits

• Accepts standard 10x38mm fuses for broad component availability.
• Rated 32A at 690VAC for demanding AC applications.
• 1P+N configuration supports phase and neutral circuits.
• Compact 1-module width saves panel space.
• Frontal IP20 protection improves touch safety.
• No status indicator for simplified, maintenance-free operation.
• Wide -20 to +70 °C operating range suits varied environments.
• Max 2.5 Nm terminal torque ensures secure connections.

Technical Specification

• Product type designation: FB
• Operating voltage type: AC
• Operating temperature: -20 to +70 °C
• Storage temperature: -40 to +80 °C
• Max altitude: 3000 m
• Terminal tightening torque (max): 2.5 Nm
• Weight: 62 g
• IP degree (frontal): IP20

What’s Included

• FB01F1M 10x38mm fuse holder (1 module)
• Product datasheet and documentation
• Protective packaging for transit

Applications

• AC circuits using 10x38mm fuses up to 690 V
• Single-phase phase-and-neutral protection in distribution boards
• Industrial control panels and machinery auxiliary circuits
• OEM builds, maintenance and MRO replacements

Safety note: Install and service only by qualified personnel. Isolate power before work, use correct 10x38mm fuses within 32A/690VAC ratings, observe IP20 limitations, and tighten terminals to a maximum of 2.5 Nm within the specified environmental conditions.
