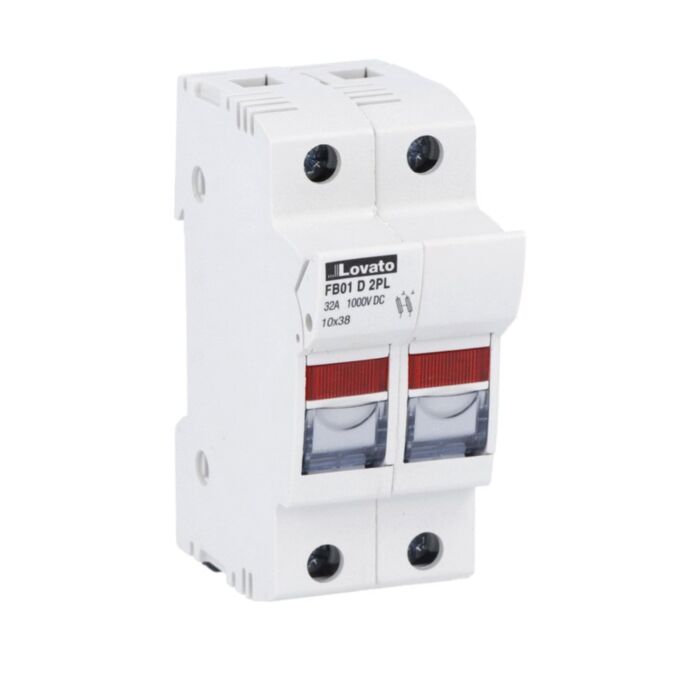

FB01D2PL - FUSE HOLDER 2P 10X38 1000V DC C/W IND.
MPN: FB01D2PL
Special Price
£22.22
£18.52
Regular Price
£37.04
Why Choose the FB01D2PL?
Lovato’s FB01D2PL is a robust 10x38mm fuse holder engineered for photovoltaic DC protection. This 2-pole unit supports 32 A at up to 1000 VDC and features a clear status indicator to speed maintenance. UL and IEC compliant and designed for PV strings, the compact 2‑module holder accepts standard 10x38 mm fuses, providing reliable overcurrent protection in demanding solar installations.
Built for reliability, this DC fuse holder operates from -20 to +70 °C with an IP20 frontal degree and a maximum altitude of 3000 m. Secure terminals tighten to 2.5 Nm, and IEC/EN and UL/CSA standards conformity underpins safety. Ideal for PV combiner boxes and inverters, it delivers dependable protection where high-voltage DC performance and certification matter.
Key Benefits
- 32 A at 1000 V DC for high-voltage photovoltaic string protection.
- Two-pole configuration enhances isolation across DC circuits.
- Integrated status indicator simplifies fuse condition checks.
- Accepts standard 10x38 mm photovoltaic fuses.
- Certified to IEC/EN and UL/CSA standards for assured compliance.
- Operates from -20 to +70 °C for varied environments.
- IP20 frontal protection with compact 2-module footprint.
Technical Specification
- Product type designation: FB
- Operating voltage type: DC
- Operating temperature: -20 to +70 °C
- Storage temperature: -40 to +80 °C
- Max altitude: 3000 m
- Terminal tightening torque (max): 2.5 Nm
- Weight: 130 g
- IP degree (frontal): IP20
What’s Included
- FB01D2PL fuse holder assembly (2 modules)
- Quick installation and safety instructions
- Protective packaging for transit
Applications
- Photovoltaic string and array protection up to 1000 V DC
- PV combiner boxes and inverter DC inputs
- DC protection within solar distribution and control panels
- Rooftop and ground-mount solar installations requiring 10x38 mm fuses
Frequently Asked Questions
What fuse size does the FB01D2PL accept?
It is designed for 10x38 mm fuses, commonly used in photovoltaic DC circuits.
What is the maximum rating of this fuse holder?
The holder is rated 32 A at up to 1000 V DC according to IEC values.
Does the unit include a status indicator?
Yes, it includes a light indicator to show fuse status at a glance.
Is it certified for photovoltaic applications?
Yes, it is IEC/UL certified and suitable for PV applications, meeting relevant standards.
What environmental limits should I consider?
It operates from -20 to +70 °C, with IP20 frontal protection and a 3000 m altitude limit.
Safety note: Install and service only by qualified personnel. Isolate the DC supply before work, fit within a suitable enclosure to maintain IP20 frontal protection, and follow applicable IEC/UL standards and manufacturer instructions.
| Manufacturer Part Number | FB01D2PL |
|---|---|
| Manufacturer | Lovato |
| Barcode | 8013975188170 |
