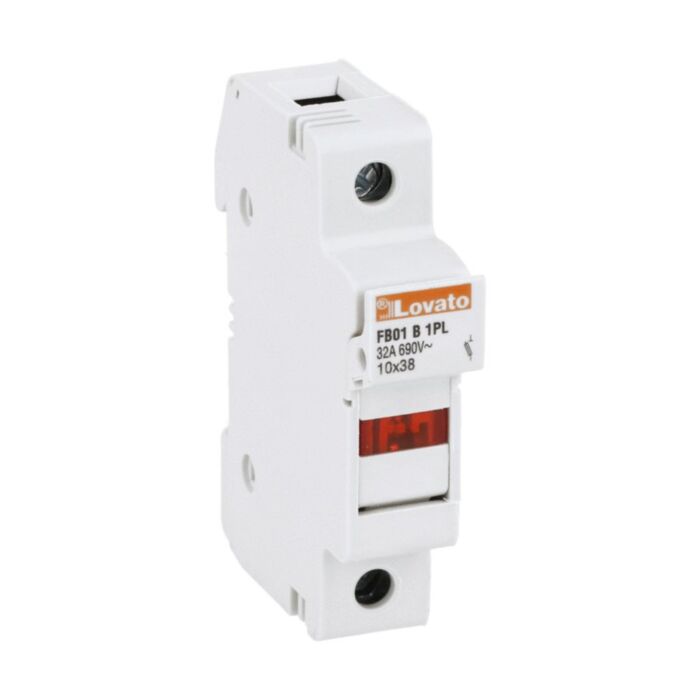

FB01B1PL - FUSE HOLDER 1P 10X38 NO UR C/W IND.
MPN: FB01B1PL
Special Price
£10.20
£8.50
Regular Price
£17.00
Why Choose the FB01B1PL?
Designed for dependable circuit protection, the Lovato FB01B1PL fuse holder (SKU FB01B1PL) accepts 10x38mm fuses and delivers secure 1P operation. Rated 32A at 690VAC for AC applications, it features an integrated status indicator for clear visual confirmation. Compact at 1 module, it supports IEC compliance, making it an excellent choice for panel builders and maintenance teams seeking a robust, standards-aligned 10x38mm fuse holder.
Built for demanding environments, this FB-series holder offers IP20 frontal protection, -20 to +70 °C operating range, and reliable performance up to 3000 m altitude. With a maximum terminal tightening torque of 2.5 Nm and a lightweight 64 g build, it simplifies installation and service. Conformity includes IEC/EN 60947-1, IEC/EN 60947-3, IEC/EN 60269-1, and IEC/EN 6069-2, with Sustainability certification.
Key Benefits
- Accepts standard 10x38mm fuses for broad compatibility.
- 32A at 690VAC rating suits robust AC protection needs.
- Clear status indicator enables quick visual fuse condition checks.
- Compact 1-module design helps optimise panel space.
- IP20 frontal protection enhances user safety during operation.
- Wide -20 to +70 °C operating range for varied environments.
- Up to 3000 m altitude capability supports high-site installations.
- IEC compliant construction ensures dependable, standards-based performance.
Technical Specification
- Product type designation: FB
- Operating voltage type: AC
- Operating temperature: -20 to +70 °C
- Storage temperature: -40 to +80 °C
- Max altitude: 3000 m
- Terminal tightening torque (max): 2.5 Nm
- Weight: 64 g
- IP degree (frontal): IP20
What’s Included
- Lovato FB01B1PL 1P fuse holder with status indicator
- User installation instructions
- Compliance and certification information
Applications
- AC circuit protection using 10x38mm cartridge fuses
- Industrial and commercial distribution panels requiring 1-pole holders
- Panel building and maintenance where visual fuse status is essential
- Upgrades or replacements for 32A, 690VAC fuse circuits
Frequently Asked Questions
What fuse size does the Lovato FB01B1PL accept?
It is designed for 10x38mm fuses.
What are the rated current and voltage?
It is rated at 32A with a maximum of 690VAC for AC operation.
Does the fuse holder include a status indicator?
Yes, it includes an integrated status indicator.
What is the operating temperature range?
The operating range is -20 to +70 °C.
Which standards does it conform to?
It conforms to IEC/EN 60947-1, IEC/EN 60947-3, IEC/EN 60269-1, and IEC/EN 6069-2.
Safety note: Ensure power is isolated before installing or replacing fuses. Use appropriately rated 10x38mm fuses and follow applicable IEC standards and site procedures.
| Manufacturer Part Number | FB01B1PL |
|---|---|
| Manufacturer | Lovato |
| Barcode | 8013975187012 |
