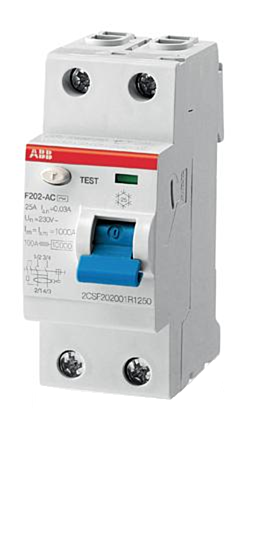

ABB f202ac-80/0.1 2 pole rcd 80a 100ma
MPN: 2CSF202001R2800
Alt. SKU: F202 AC-80/0.1
Special Price
£117.66
£98.05
Regular Price
£196.09
Why Choose the F202 AC-80/0.1 [2CSF202001R2800]
The RCCBs F200 series assures protection to people and installations against fault current to earth. A large offer for standard instantaneous and selective AC and A types is completed with some configurations for special applications.
Technical Specification
- Function: Residual Current Circuit Breaker (RCCB) type AC, instantaneous operating characteristic.
- Rated Voltage: 110-254 V AC.
- Maximum Surge Current: 0.25 kA.
- Number of Poles: 2P (two poles).
- Rated Cross-Section: Multi-wired 0–35 mm², solid-core 35 mm².
- Terminal Type: Screw terminals with cage and failsafe bi-directional cylinder-lift options.
- Wire Stripping Length: Top 12.7 mm, Bottom 14.9 mm.
- Electrical Endurance: 10,000 cycles.
- Mechanical Endurance: 20,000 cycles.
- Tightening Torque: 2.8 N·m.
Trusted By Customers Worldwide
"Specified by UK panel builders for dependable control." Controls Engineer, UK
Frequently Asked Questions
What is the function of the RCCB F200 series?
The RCCB F200 series provides protection against fault current to earth, ensuring safety for people and installations.
What is the rated voltage for the RCCB F200 series?
The rated voltage for the RCCB F200 series is between 110-254 V AC.
What is the maximum surge current the RCCB can handle?
The maximum surge current is 0.25 kA.
How many poles does the RCCB F200 series have?
The RCCB F200 series is available in a 2P configuration, meaning it has two poles.
What is the rated cross-section for wiring?
The rated cross-section for multi-wired connections is 0–35 mm², and for solid-core connections, it is 35 mm².
What type of terminals does the RCCB F200 series use?
The RCCB F200 series features screw terminals with cage and failsafe bi-directional cylinder-lift options.
What is the electrical endurance of the RCCB?
The electrical endurance is rated for 10,000 cycles.
| Manufacturer Part Number | 2CSF202001R2800 |
|---|---|
| Amperage | 80A |
| Number of Poles | 2 Pole |
| Manufacturer | ABB |
| Alternative Product SKU | F202 AC-80/0.1 |
| Barcode | 8012542914402 |
| Product Lead Time | Contact us for a delivery time before you order |
