1sda060294r1 t6h 800 pr221ds-ls/i in=800 4 pole abb mccb
MPN: 1SDA060294R1
Alt. SKU: T6H 800 PR221DS-LS/I In=800 4p F F
Special Price
£4,475.14
£3,729.28
Regular Price
£6,884.83
Why Choose the Moulded Case Circuit Breaker [1SDA060294R1]

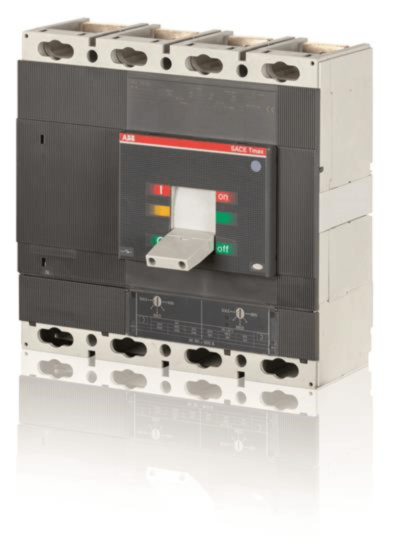

The C.BREAKER TMAX T6H 800 is a fixed four-pole circuit breaker featuring front terminals for straightforward installation and maintenance. It incorporates a solid-state release mechanism, ensuring precise and reliable protection in AC applications. Model PR221DS-LS/I R 800 is designed for robust performance in demanding electrical distribution systems, offering enhanced safety and compatibility with standard switchgear configurations.
Technical Specification
- Function: Moulded Case Circuit Breaker, four-pole fixed type with front terminals.
- Rated Current (In): 800 A.
- Rated Operational Voltage: 690 V AC.
- Rated Insulation Voltage (Ui): 1000 V.
- Rated Impulse Withstand Voltage (Uimp): 8 kV.
- Short-Circuit Breaking Capacity: Up to 100 kA at 220–230 V AC; 70 kA at 380–415 V AC; 50 kA at 440–500 V AC; 19 kA at 690 V AC.
- Mechanical Durability: 20,000 cycles at 120 cycles per hour.
- Electrical Durability: 5,000 cycles at 60 cycles per hour.
- Terminal Type: Fixed front terminals.
- Test Voltage Max (Utest): 3,500 V.
Trusted By Customers Worldwide
"Specified by UK panel builders for dependable control." Controls Engineer, UK
Frequently Asked Questions
What is the rated current of the C.BREAKER TMAX T6H 800?
The rated current is 800 A.
What is the maximum operational voltage for this circuit breaker?
The rated operational voltage is 690 V AC.
What is the short-circuit breaking capacity at 415 V AC?
The short-circuit breaking capacity is 70 kA at 380–415 V AC.
How many mechanical cycles can the circuit breaker endure?
The mechanical durability is rated for 20,000 cycles at 120 cycles per hour.
What type of terminals does this circuit breaker have?
This circuit breaker features fixed front terminals.
What is the rated insulation voltage for the C.BREAKER TMAX T6H 800?
The rated insulation voltage is 1000 V.
What standards and approvals does this product conform to?
See the manufacturer's data sheet for standards and approvals.
| Manufacturer Part Number | 1SDA060294R1 |
|---|---|
| Barcode | 8015644627607 |
| Manufacturer | ABB |
| Number of Poles | 4 Pole |
| Amperage | 800A |
| Alternative Product SKU | T6H 800 PR221DS-LS/I In=800 4p F F |
| Product Lead Time | Please contact us for a delivery time |
