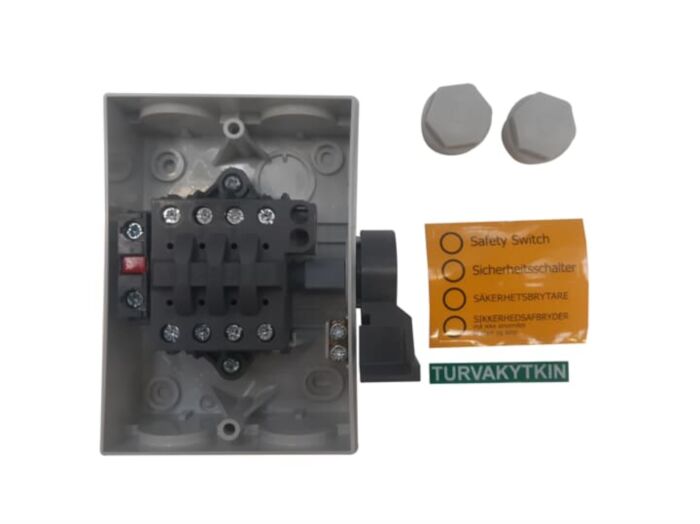

BWS416TPSN Safety switch
MPN: 2CMA142418R1000
Alt. SKU: BWS416TPSN
Special Price
£46.70
£38.92
Regular Price
£71.84
Why Choose the BWS416TPSN [2CMA142418R1000]
Safety switch, 4-p. 415V AC23 16A, 7.5kW. Mounted auxiliary contact: 1NO0NC. Plastic enclosure. IP65. Grey Side-operated handle. Interlocked cover. The enclosure of the ABB´s side controlled enclosed switches is made of rigid polycarbonate. The enclosure is UV protected, and protected against low pressure water jets (IP65), and hence built for outdoor and indoor use. The enclosure is available in different colors, grey, yellow and white. The cable entries are threaded and have knock out holes for 2 parallell cables, both from top and bottom. Membrane grommets are included (IP54). The handle is padlockable and made for one padlock. The cover is interlocked. The switch is made for 5 wire system, and have a switchable neutral terminal and PE terminal. The terminals are easily accessible for easy installation.
Technical Specification
- Function: 4-pole safety switch with 1 NO auxiliary contact.
- Voltage Rating: Rated operational voltage up to 690 V AC.
- Current Rating: AC-23A current 16 A at 380-415 V; 10 A at 690 V.
- Power Rating: 7.5 kW at 380-690 V AC (AC-23A).
- Insulation and Impulse Withstand: Rated insulation voltage 690 V; impulse withstand voltage 8 kV.
- Degree of Protection: IP65 enclosure, suitable for indoor and outdoor use.
- Terminals: Screw clamp terminals for 0.75 – 10 mm² cable cross-section, switchable neutral and PE terminal included.
- Enclosure Material: UV-protected rigid polycarbonate, impact resistance rating IK08.
- Handle: Grey side-operated handle, padlockable with one padlock, interlocked cover.
Trusted By Customers Worldwide
"Specified by UK panel builders for dependable control." Controls Engineer, UK
Frequently Asked Questions
What is the current rating of the safety switch?
The safety switch has a current rating of 16 A at 380-415 V and 10 A at 690 V.
What is the degree of protection for this switch?
The switch has an IP65 rating, making it suitable for both indoor and outdoor use.
What type of enclosure material is used?
The enclosure is made of UV-protected rigid polycarbonate.
What is the cable capacity for the terminals?
The terminals can accommodate cable cross-sections from 0.75 to 10 mm².
Is the handle of the switch padlockable?
Yes, the handle is padlockable with one padlock.
What is the power rating of the switch?
The power rating is 7.5 kW at 380-690 V AC.
What standards and approvals does this product conform to?
See the manufacturer's data sheet for standards and approvals.
| Manufacturer Part Number | 2CMA142418R1000 |
|---|---|
| Packed Quantity | 1 |
| Height | 130mm |
| Width | 111mm |
| Depth | 60mm |
| Amperage | 16A |
| Degree of protection (IP) | IP65 |
| KW Rating | 7.5kW |
| Number of Poles | 4 Pole |
| Manufacturer | ABB |
| Alternative Product SKU | BWS416TPSN |
| Barcode | 7392696424189 |
