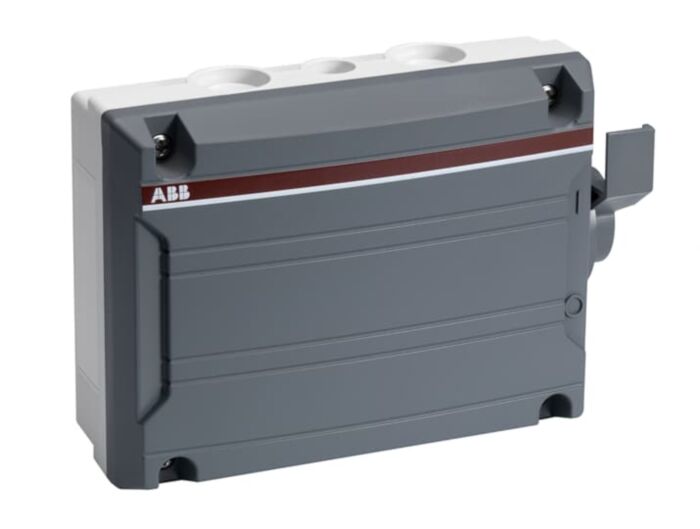

BW625TPN Enclosed Switch Disconnector
MPN: 2CMA142406R1000
Alt. SKU: BW625TPN
Special Price
£57.94
£48.28
Regular Price
£89.14
Why Choose the BW625TPN [2CMA142406R1000]
Encl. Switch Disconnector, 6-p. 415V AC23 16A, 7.5kW. Plastic enclosure. IP65. Grey Side-operated handle. Interlocked cover. The enclosure of the ABB´s side controlled enclosed switches are made of rigid polycarbonate. The enclosure is UV protected, and protected against low pressure water jets (IP65), and hence built for outdoor and indoor use. The enclosure for 6 pole switches is available in different colors, grey and yellow. The cable entries are of none threaded knock out types with holes for 2 parallell cables, both from top and bottom. Membrane grommets and locking nuts are included (IP54). The handle is padlockable and made for one padlock. The cover is interlocked. The switch includes neutral and PE terminal. The terminals are easily accessible for easy installation.
Technical Specification
- Function: 6-pole enclosed switch disconnector with side-operated handle.
- Rated Operational Voltage: 690 V AC.
- Rated Operational Current AC-23A: 16 A at 380–415 V, 16 A at 500 V, 10 A at 690 V.
- Rated Operational Power AC-23A: 7.5 kW at 380–415 V, 500 V, and 690 V.
- Insulation Voltage (Ui): 690 V according to IEC/EN 60664-1.
- Impulse Withstand Voltage (Uimp): 8 kV.
- Degree of Protection: IP65 (dust tight and protected against water jets).
- Terminal Type and Size Range: Screw clamp terminals for 0.75 to 10 mm² cables; includes PE and neutral terminals.
- Enclosure Material: UV-protected rigid polycarbonate, impact resistance rating IK08.
- Mechanical Features: Padlockable side handle, interlocked cover, cable entries top and bottom with membrane grommets.
Trusted By Customers Worldwide
"Specified by UK panel builders for dependable control." Controls Engineer, UK
Frequently Asked Questions
What is the rated operational voltage of the switch disconnector?
The rated operational voltage is 690 V AC.
What is the maximum current capacity of the switch?
The maximum current capacity is 16 A at 380–415 V and 500 V, and 10 A at 690 V.
What types of cables can be used with this switch disconnector?
The switch accommodates screw clamp terminals for cables ranging from 0.75 to 10 mm².
Is the enclosure suitable for outdoor use?
Yes, the enclosure is IP65 rated, making it suitable for both outdoor and indoor use.
Can the handle be locked?
Yes, the handle is padlockable and designed for one padlock.
What is the degree of protection for this switch disconnector?
The degree of protection is IP65, which is dust tight and protected against low pressure water jets.
What standards and approvals does this product conform to?
See the manufacturer's data sheet for standards and approvals.
| Manufacturer Part Number | 2CMA142406R1000 |
|---|---|
| Packed Quantity | 1 |
| Height | 130mm |
| Width | 190mm |
| Depth | 65mm |
| Amperage | 16A |
| Degree of protection (IP) | IP65 |
| KW Rating | 7.5kW |
| Number of Poles | 6 Pole |
| Manufacturer | ABB |
| Alternative Product SKU | BW625TPN |
| Barcode | 7392696424066 |
