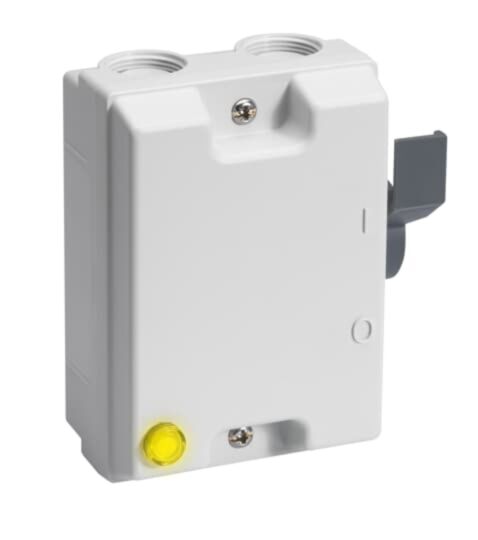

BW325LTPN Enclosed Switch Disconnector
MPN: 2CMA142404R1000
Alt. SKU: BW325LTPN
Special Price
£48.89
£40.74
Regular Price
£75.20
Why Choose the BW325LTPN [2CMA142404R1000]
Encl. Switch Disconnector, 3-p. 415V AC23 16A, 7.5kW. Plastic enclosure. IP54. Grey Side-operated handle. Interlocked cover. The enclosure of the ABB´s side controlled enclosed switches is made of rigid polycarbonate. The enclosure is UV protected, and protected against low pressure water jets (IP65), and hence built for outdoor and indoor use. The enclosure is available in different colors, grey, yellow and white. The cable entries are threaded and have knock out holes for 2 parallell cables, both from top and bottom. Membrane grommets are included (IP54). The handle is padlockable and made for one padlock. The cover is interlocked. The switch is made for 5 wire system, and have a fixed neutral terminal and PE terminal. The terminals are easily accessible for easy installation.
Technical Specification
- Function: 3-pole enclosed switch disconnector, side-operated handle with interlocked cover.
- Rated Operational Voltage: 690 V AC.
- Rated Operational Current AC-23A: 16 A at 380–415 V; 16 A at 500 V; 10 A at 690 V.
- Rated Operational Power AC-23A: 7.5 kW at up to 690 V.
- Degree of Protection: IP65 (protection against low-pressure water jets, suitable for indoor/outdoor use).
- Enclosure Material: Rigid, UV-protected polycarbonate with IK08 impact resistance.
- Terminal Type and Size: Screw clamp terminals for 0.75–10 mm² conductors; fixed neutral and PE terminals included.
- Rated Insulation Voltage: 690 V (IEC/EN 60664-1).
- Rated Impulse Withstand Voltage: 8 kV.
- Cable Entry: Threaded knock-out holes for two parallel cables at top and bottom (2×M25 per side).
Trusted By Customers Worldwide
"Specified by UK panel builders for dependable control." Controls Engineer, UK
Frequently Asked Questions
What is the rated operational voltage of the switch disconnector?
The rated operational voltage is 690 V AC.
What is the maximum current rating for this switch?
The maximum current rating is 16 A at 380–415 V and 10 A at 690 V.
What is the degree of protection for this enclosure?
The enclosure has a degree of protection rated at IP65.
What type of terminals does the switch have?
The switch features screw clamp terminals for conductors sized 0.75–10 mm², along with fixed neutral and PE terminals.
Can the switch be used outdoors?
Yes, the switch is suitable for both indoor and outdoor use due to its UV protection and IP65 rating.
How many cables can be connected to the switch?
The switch has threaded knock-out holes for two parallel cables at both the top and bottom.
What is the impact resistance of the enclosure?
The enclosure has an IK08 impact resistance rating.
| Manufacturer Part Number | 2CMA142404R1000 |
|---|---|
| Packed Quantity | 1 |
| Height | 130mm |
| Width | 111mm |
| Depth | 60mm |
| Amperage | 16A |
| Degree of protection (IP) | IP54 |
| KW Rating | 7.5kW |
| Number of Poles | 3 Pole |
| Manufacturer | ABB |
| Alternative Product SKU | BW325LTPN |
| Barcode | 7392696424042 |
| Product Image | For Illustration Purposes Only |
