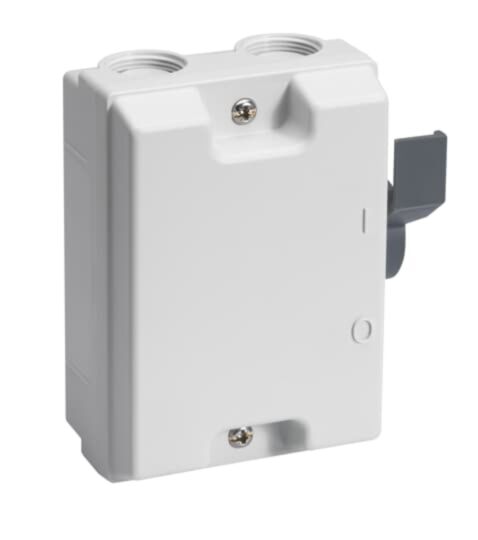

BW325KTPN Enclosed Switch Disconnector
MPN: 2CMA142443R1000
Alt. SKU: BW325KTPN
Special Price
£34.25
£28.54
Regular Price
£52.69
Why Choose the BW325KTPN [2CMA142443R1000]
Encl. Switch Disconnector, 3-p. 415V AC23 16A, 7.5kW. Plastic enclosure. IP65. Grey Side-operated handle. Interlocked cover. The enclosure of the ABB´s side controlled enclosed switches is made of rigid polycarbonate. The enclosure is UV protected, and protected against low pressure water jets (IP65), and hence built for outdoor and indoor use. The enclosure is available in different colors, grey, yellow and white. The cable entries are threaded and have knock out holes for 2 parallell cables, both from top and bottom. Membrane grommets are included (IP54). The handle is padlockable and made for one padlock. The cover is interlocked. The switch is made for 5 wire system, and have a fixed neutral terminal and PE terminal. The terminals are easily accessible for easy installation.
Technical Specification
- Function: Enclosed 3-pole switch disconnector with side-operated grey handle and interlocked cover.
- Rated Operational Voltage: Up to 690 V AC.
- Rated Operational Current (AC-23A): 16 A at 380–415 V, 16 A at 500 V, 10 A at 690 V.
- Rated Operational Power (AC-23A): 7.5 kW at 380–690 V.
- Insulation Voltage (Ui): 690 V according to IEC/EN 60664-1.
- Impulse Withstand Voltage (Uimp): 8 kV.
- Degree of Protection: IP65 (dusttight and protected against low-pressure water jets).
- Terminal Type and Size: Screw clamp terminals for cables 0.75 to 10 mm², fixed neutral and PE terminals included.
- Enclosure Material: UV-resistant rigid polycarbonate, impact rated IK08.
Trusted By Customers Worldwide
"Specified by UK panel builders for dependable control." Controls Engineer, UK
Frequently Asked Questions
What is the rated operational current of the switch disconnector?
The rated operational current is 16 A at 380–415 V, 16 A at 500 V, and 10 A at 690 V.
What is the degree of protection for this switch disconnector?
The degree of protection is IP65, making it dust-tight and protected against low-pressure water jets.
What type of enclosure material is used for this product?
The enclosure is made of UV-resistant rigid polycarbonate.
What is the maximum rated operational power of the switch?
The maximum rated operational power is 7.5 kW at 380–690 V.
What cable sizes can be used with the terminals?
The terminals accommodate cables from 0.75 to 10 mm².
Is the handle of the switch disconnector lockable?
Yes, the handle is padlockable and designed for one padlock.
What should I refer to for standards and approvals?
See the manufacturer's data sheet for standards and approvals.
| Manufacturer Part Number | 2CMA142443R1000 |
|---|---|
| Packed Quantity | 1 |
| Height | 130mm |
| Width | 111mm |
| Depth | 60mm |
| Amperage | 16A |
| Degree of protection (IP) | IP65 |
| KW Rating | 7.5kW |
| Number of Poles | 3 Pole |
| Manufacturer | ABB |
| Alternative Product SKU | BW325KTPN |
| Barcode | 7392696424431 |
