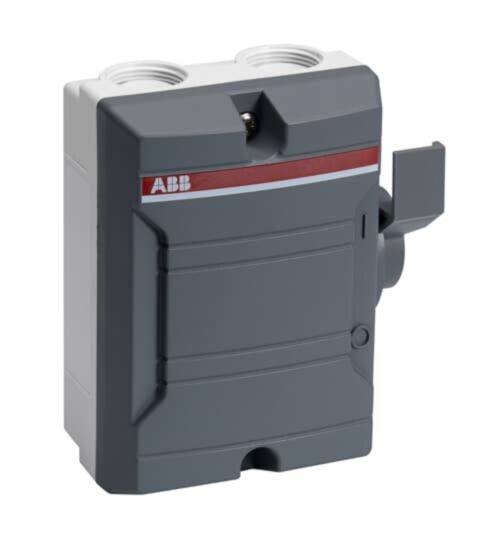

BAS16/1TP Safety switch
MPN: 2CMA142305R1000
Alt. SKU: BAS16/1TP
Special Price
£63.24
£52.70
Regular Price
£97.30
Why Choose the BAS16/1TP [2CMA142305R1000]
Safety switch, 3-p. 415V AC23 16A, 7.5kW. Mounted auxiliary contact: 1NO0NC. Plastic enclosure. IP65. Grey Side-operated handle. Interlocked cover. The enclosure of the ABB´s side controlled enclosed switches is made of rigid polycarbonate. The enclosure is UV protected, and protected against low pressure water jets (IP65), and hence built for outdoor and indoor use. The enclosure is available in different colors, grey, yellow and white. The cable entries are threaded and have knock out holes for 2 parallell cables, both from top and bottom. Membrane grommets are included (IP54). The handle is padlockable and made for one padlock. The cover is interlocked. The switch is made for 5 wire system, and have a fixed neutral terminal and PE terminal. The terminals are easily accessible for easy installation.
Technical Specification
- Function: 3-pole safety switch with 1 NO auxiliary contact.
- Rated Operational Voltage: Up to 690 V AC.
- Rated Operational Current (AC-23A): 16 A at 380–415 V, 16 A at 500 V, 10 A at 690 V.
- Rated Operational Power (AC-23A): 7.5 kW at 380–690 V.
- Insulation and Impulse Ratings: Rated insulation voltage 690 V; rated impulse withstand voltage 8 kV.
- Degree of Protection: IP65 for indoor and outdoor use.
- Terminal Type and Size Range: Screw terminals, suitable for 0.75 to 10 mm² conductors.
- Mechanical Durability: 10,000 operating cycles.
- Enclosure Material: UV-resistant plastic with IK08 impact rating.
Trusted By Customers Worldwide
"Specified by UK panel builders for dependable control." Controls Engineer, UK
Frequently Asked Questions
What is the rated operational current of the safety switch?
The rated operational current is 16 A at 380–415 V, 16 A at 500 V, and 10 A at 690 V.
What is the degree of protection for this safety switch?
The safety switch has a degree of protection rated at IP65, suitable for both indoor and outdoor use.
What type of enclosure material is used for this switch?
The enclosure is made of UV-resistant plastic with an IK08 impact rating.
What is the maximum rated operational power of the switch?
The maximum rated operational power is 7.5 kW at 380–690 V.
What is the cable capacity for the terminals?
The terminals are suitable for conductors ranging from 0.75 to 10 mm².
Can the handle be locked?
Yes, the handle is padlockable and designed for one padlock.
What type of auxiliary contact is mounted with the switch?
The switch includes a mounted auxiliary contact of 1 NO and 0 NC.
| Manufacturer Part Number | 2CMA142305R1000 |
|---|---|
| Packed Quantity | 1 |
| Height | 130mm |
| Width | 111mm |
| Depth | 60mm |
| Amperage | 16A |
| Degree of protection (IP) | IP65 |
| KW Rating | 7.5kW |
| Number of Poles | 3 Pole |
| Manufacturer | ABB |
| Alternative Product SKU | BAS16/1TP |
| Barcode | 7392696423052 |
