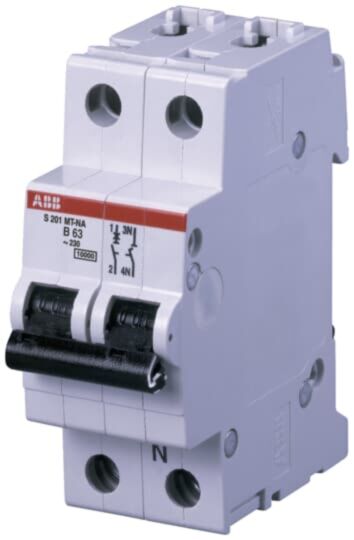

ABB S201MT-K8NA MCB - S200M - 2P - K - 8A
MPN: 2CDS271446R0407
Alt. SKU: S201MT-K8NA
Special Price
£101.00
£84.17
Regular Price
£134.66
Why Choose the S201MT-K8NA [2CDS271446R0407]
S201MT-K8NA Miniature Circuit Breaker K-Char., 10kA, 8A, 1P, +NA
Technical Specification
- Function: Miniature Circuit Breaker, K-Characteristic curve.
- Rated Current: 8 A.
- Rated Voltage: 230/400 V AC.
- Breaking Capacity: 15 kA ultimate short-circuit (Icu), 11.2 kA service short-circuit (Ics).
- Poles: 1 pole + Neutral (1P+N).
- Terminal Type: Screw terminals, bi-directional cylinder-lift.
- Connecting Capacity: Flexible up to 25 mm², rigid up to 35 mm² including ferrules.
- Dielectric Test Voltage: 2 kV, 50/60 Hz, 1 minute.
- Mechanical Endurance: 20,000 cycles.
- Installation Size: 3 modular units (DIN 43880).
Trusted By Customers Worldwide
"Specified by UK panel builders for dependable control." Controls Engineer, UK
Frequently Asked Questions
What is the rated current of the S201MT-K8NA Miniature Circuit Breaker?
The rated current is 8 A.
What is the breaking capacity of this circuit breaker?
The ultimate short-circuit breaking capacity is 15 kA, and the service short-circuit breaking capacity is 11.2 kA.
What is the voltage rating for the S201MT-K8NA?
The rated voltage is 230/400 V AC.
What type of terminals does this circuit breaker use?
It features screw terminals with a bi-directional cylinder-lift design.
What is the maximum cable capacity for flexible and rigid cables?
The connecting capacity is flexible up to 25 mm² and rigid up to 35 mm² including ferrules.
How many poles does the S201MT-K8NA have?
It has 1 pole plus Neutral (1P+N).
What is the installation size of this circuit breaker?
The installation size is 3 modular units (DIN 43880).
| Manufacturer Part Number | 2CDS271446R0407 |
|---|---|
| Amperage | 8A |
| Number of Poles | 2 Pole |
| HS Code | 85362010 |
| Country of Manufacture | Germany |
| Manufacturer | ABB |
| Alternative Product SKU | S201MT-K8NA |
| Barcode | 4016779126182 |
