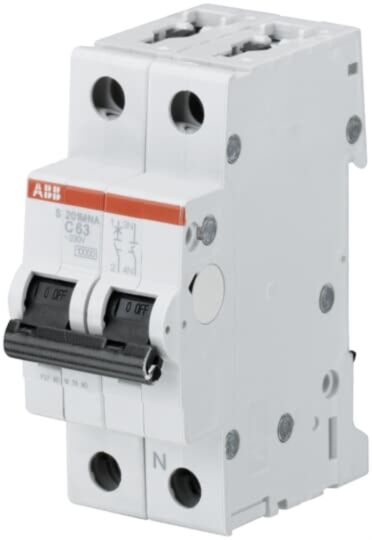

ABB S201M-D1NA MCB - S200M - 2P - D - 1A
MPN: 2CDS271103R0011
Alt. SKU: S201M-D1NA
Special Price
£45.05
£37.54
Regular Price
£81.90
Why Choose the S201M-D1NA [2CDS271103R0011]
System pro M compact S200M miniature circuit breakers are current limiting. They have two different tripping mechanisms, the delayed thermal tripping mechanism for overload protection and the electromechanic tripping mechanism for short circuit protection. They are available in different characteristics (B,C,D,K,Z), configurations (1P,1P+N,2P,3P,3P+N,4P), breaking capacities (up to 10 kA at 230/400 V AC) and rated currents (up to 63A). All MCBs of the product range S200M comply with IEC/EN 60898-1 and IEC/EN 609 47-2, allowing the use for residential, commercial and industrial applications. Bottom-fitting auxiliary contact can be mounted on S200M to save 50% space.
Technical Specification
- Function: Current limiting miniature circuit breaker with thermal and electromechanic tripping for overload and short circuit protection.
- Rated Current: Up to 63A.
- Voltage Rating: 230/400 V AC, max operating voltage UL/CSA 60 V DC / 480Y/277 V AC.
- Contact Configuration: 1P+N.
- Breaking Capacity: Ultimate short-circuit breaking capacity up to 25 kA (133 V AC), 15 kA (230/400 V AC).
- Terminal Type and Capacity: Screw terminals; flexible 0.75–25 mm², rigid 0.75–35 mm², busbar 10/10 mm².
- Mechanical and Electrical Endurance: 20,000 cycles each.
- Insulation and Impulse Rating: Dielectric test voltage 2 kV (50/60 Hz, 1 min); energy limiting class 3.
Trusted By Customers Worldwide
"Specified by UK panel builders for dependable control." Controls Engineer, UK
Frequently Asked Questions
What is the maximum rated current for the S200M miniature circuit breakers?
The maximum rated current for the S200M miniature circuit breakers is up to 63A.
What are the available breaking capacities for the S200M circuit breakers?
The S200M circuit breakers have an ultimate short-circuit breaking capacity of up to 25 kA at 133 V AC and 15 kA at 230/400 V AC.
What types of tripping mechanisms are used in the S200M circuit breakers?
The S200M circuit breakers utilise a delayed thermal tripping mechanism for overload protection and an electromechanic tripping mechanism for short circuit protection.
Can auxiliary contacts be mounted on the S200M circuit breakers?
Yes, bottom-fitting auxiliary contacts can be mounted on the S200M to save 50% space.
What is the terminal capacity for the S200M circuit breakers?
The S200M circuit breakers have screw terminals with a capacity for flexible cables of 0.75–25 mm², rigid cables of 0.75–35 mm², and busbar connections of 10/10 mm².
What standards do the S200M circuit breakers comply with?
All S200M circuit breakers comply with IEC/EN 60898-1 and IEC/EN 60947-2. See the manufacturer's data sheet for standards and approvals.
| Manufacturer Part Number | 2CDS271103R0011 |
|---|---|
| Amperage | 1A |
| Number of Poles | 2 Pole |
| Manufacturer | ABB |
| Alternative Product SKU | S201M-D1NA |
| Barcode | 4016779599849 |
