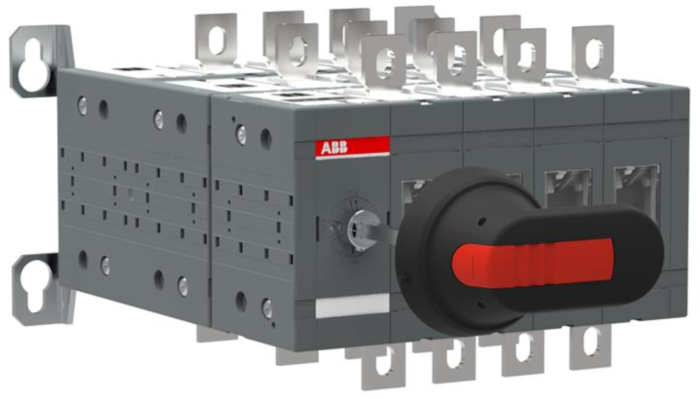

ABB ot160e04yp 160 amp 4 pole by-pass switch
MPN: 1SCA123556R1001
Alt. SKU: OT160E04YP
Special Price
£818.70
£682.25
Regular Price
£1,259.53
Why Choose the OT160E04YP [1SCA123556R1001]
This product features a black plastic IP65-rated I-0-II pistol grip handle with a snap-on handle extension to facilitate smooth manual operation. The shaft and bolt set ensure secure cable connection. The handle extension can be easily attached or removed; it must be removed when padlocking the standard handle. The handle is padlockable in the 0 position, with door interlock functionality active in the I and II positions, as well as when padlocked, providing enhanced safety and operational control.
Technical Specification
- Rated Operational Current (AC-23A): 160 A at 380–690 V.
- Rated Operational Power (AC-23A): Up to 160 kW at 690 V.
- Rated Insulation Voltage (Ui): 1000 V.
- Rated Impulse Withstand Voltage (Uimp): 12 kV.
- Number of Poles: 4 poles with fourth pole switched simultaneously on right side.
- Degree of Protection (Front): IP20.
- Terminal Type: Screw terminals, tightening torque 15–22 N·m.
- Mounting: Base mounting with front operation.
- Conventional Free-air Thermal Current (Ith): 160 A at 40 °C.
- Short-time Withstand Current (Icewm): 8 kA for 1 second.
Trusted By Customers Worldwide
"Specified by UK panel builders for dependable control." Controls Engineer, UK
Frequently Asked Questions
What is the rated operational current of this product?
The rated operational current is 160 A at 380–690 V (AC-23A).
What is the degree of protection for the front of the device?
The degree of protection for the front is IP20.
How is the handle extension mounted?
The handle extension is snap-on mounted on the standard handle for manual operation.
What is the maximum rated operational power?
The maximum rated operational power is up to 160 kW at 690 V.
What type of terminals does this product use?
This product uses screw terminals with a tightening torque of 15–22 N·m.
Can the handle be padlocked?
Yes, the handle can be padlocked in the 0-position, and there is a door interlock in the I- and II-positions when padlocked.
What is the conventional free-air thermal current rating?
The conventional free-air thermal current rating is 160 A at 40 °C.
| Manufacturer Part Number | 1SCA123556R1001 |
|---|---|
| Amperage | 160A |
| Number of Poles | 4 Pole |
| Manufacturer | ABB |
| Mount Type | Base mounted |
| Alternative Product SKU | OT160E04YP |
| Barcode | 6417019543406 |
| Product Lead Time | 1-2 days |
| Product Image | For Illustration Purposes Only |
