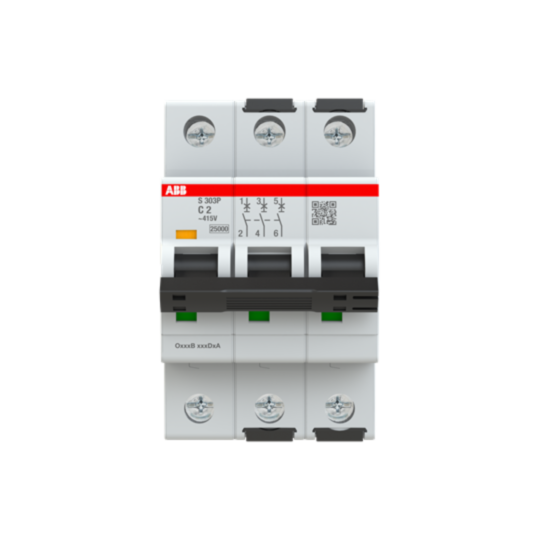

2CDS383001R0024 ABB S303P-C2 Miniature Circuit Breaker - 3P - C - 2 A
MPN: 2CDS383001R0024
Alt. SKU: S303P-C2
Special Price
£95.71
£79.76
Regular Price
£174.01
This product replaces this item:
Why Choose the S303P-C2 [2CDS383001R0024]
The MCBs S300P series assures protection in industrial installations against overload and short circuits. This product is manufactured according to international IEC and UL standards, for the markets where it is required.
Technical Specification
- Function: Moulded Case Breaker (MCB) for protection against overload and short circuits in industrial installations.
- Rated Ultimate Short-Circuit Breaking Capacity: 100 kA at 400 V AC, 415 V AC, 440 V AC; 25 kA at 72 V DC.
- Number of Poles: 3P (Three poles).
- Contact Position Indication: Red ON / Green OFF.
- Insulation and Dielectric Test Voltage: 2 kV at 50/60 Hz for 1 minute.
- Terminal Type and Connection Capacity: Screw terminals, suitable for busbar 10/10 mm²; flexible and rigid cables from 0.75 to 35 mm².
- Mechanical and Electrical Endurance: 20,000 cycles each.
- Tightening Torque: 2.8 N·m (18 in·lb UL/CSA).
- Actuator Type and Material: Toggle, black insulation group II, sealable.
Trusted By Customers Worldwide
"Specified by UK panel builders for dependable control." Controls Engineer, UK
Frequently Asked Questions
What is the function of the MCB S300P series?
The MCB S300P series provides protection against overload and short circuits in industrial installations.
What is the rated ultimate short-circuit breaking capacity?
The rated ultimate short-circuit breaking capacity is 100 kA at 400 V AC, 415 V AC, 440 V AC, and 25 kA at 72 V DC.
How many poles does the MCB S300P have?
The MCB S300P has 3 poles (3P).
What is the terminal connection capacity for the MCB S300P?
The MCB S300P has screw terminals suitable for busbar 10/10 mm² and flexible and rigid cables from 0.75 to 35 mm².
What is the tightening torque for the terminals?
The tightening torque is 2.8 N·m (18 in·lb UL/CSA).
What is the mechanical and electrical endurance of the MCB?
The MCB has a mechanical and electrical endurance of 20,000 cycles each.
Is the MCB compliant with any standards?
See the manufacturer's data sheet for standards and approvals.
| Manufacturer Part Number | 2CDS383001R0024 |
|---|---|
| Packed Quantity | 1 |
| Barcode | 4016779078269 |
| HS Code | 85362010 |
| Country of Manufacture | Germany |
| Manufacturer | ABB |
| Number of Poles | 3 Pole |
| Amperage | 2A |
| Alternative Product SKU | S303P-C2 |
