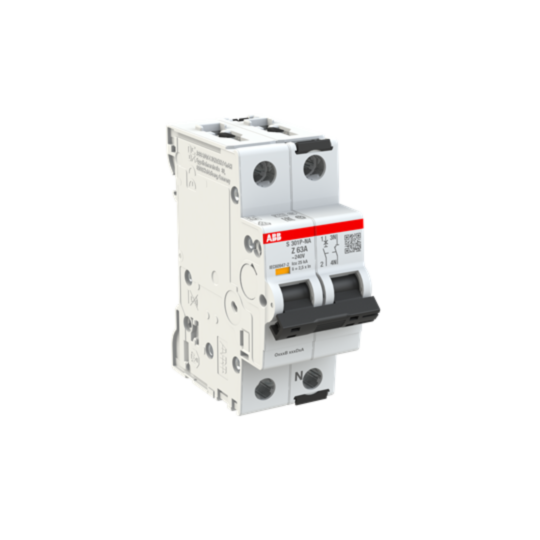

2CDS381103R0608 ABB S301P-Z63NA Miniature Circuit Breaker - 1+NP - Z - 63 A
MPN: 2CDS381103R0608
Alt. SKU: S301P-Z63NA
Special Price
£82.99
£69.16
Regular Price
£150.90
This product replaces this item:
Why Choose the S301P-Z63NA [2CDS381103R0608]
The MCBs S300P series assures protection in industrial installations against overload and short circuits. This product is manufactured according to international IEC and UL standards, for the markets where it is required.
Technical Specification
- Function: Protection against overload and short circuits in industrial installations.
- Rated Voltage: Up to 480Y/277 V AC (UL/CSA).
- Breaking Capacity: 25 kA (240 V AC, 230 V, 72 V DC).
- Service Short-Circuit Breaking Capacity: 7.5 kA (240 V AC, 72 V DC).
- Contact Configuration: 1 pole + neutral (1P+N) with Red ON / Green OFF indication.
- Terminal Type and Capacity: Screw terminals; flexible 0.75–25 mm², rigid 0.75–35 mm²; busbar 10/10 mm².
- Insulation & Dielectric Strength: Dielectric test voltage 2 kV at 50/60 Hz for 1 minute.
- Mechanical Durability: 20,000 cycles; Electrical endurance 10,000 AC cycles.
- Actuator: Toggle type, black insulated, sealable with I / O marking.
Trusted By Customers Worldwide
"Specified by UK panel builders for dependable control." Controls Engineer, UK
Frequently Asked Questions
What is the primary function of the MCBs S300P series?
The MCBs S300P series provides protection against overload and short circuits in industrial installations.
What is the rated voltage for the MCBs S300P series?
The rated voltage is up to 480Y/277 V AC (UL/CSA).
What is the breaking capacity of the MCBs S300P series?
The breaking capacity is 25 kA at 240 V AC and 72 V DC, with a service short-circuit breaking capacity of 7.5 kA at 240 V AC and 72 V DC.
What is the terminal type and capacity for the MCBs S300P series?
The MCBs S300P series features screw terminals with a capacity of flexible 0.75–25 mm² and rigid 0.75–35 mm²; busbar capacity is 10/10 mm².
What is the mechanical durability of the MCBs S300P series?
The mechanical durability is rated for 20,000 cycles, while the electrical endurance is rated for 10,000 AC cycles.
What type of actuator does the MCBs S300P series use?
The actuator is a toggle type, black insulated, and can be sealed with I/O marking.
Is the MCBs S300P series compliant with any standards?
See the manufacturer's data sheet for standards and approvals.
| Manufacturer Part Number | 2CDS381103R0608 |
|---|---|
| Packed Quantity | 1 |
| Barcode | 4016779079174 |
| Product Image | For Illustration Purposes Only |
| HS Code | 85362010 |
| Country of Manufacture | Germany |
| Manufacturer | ABB |
| Number of Poles | 1 Pole + N |
| Amperage | 63A |
| Alternative Product SKU | S301P-Z63NA |
