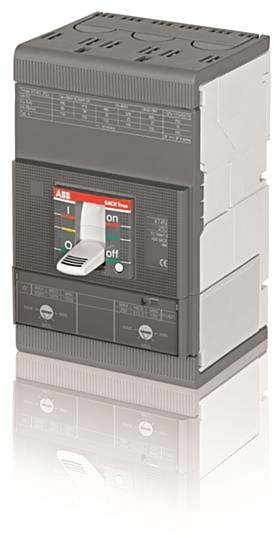

ABB XT4L 160 3 pole Low MCCB Adjustable Thermal-Magnetic Release In=40A Ii=400A
MPN: 1SDA068369R1
Alt. SKU: XT4L 160 TMA 40-400 3p F F
Special Price
£721.96
£601.63
Regular Price
£1,110.70
Why Choose the Moulded Case Circuit Breaker [1SDA068369R1]
The C.BREAKER TMAX XT4L 160 is a fixed three-pole circuit breaker featuring front terminals for straightforward installation. It incorporates a thermomagnetic release (TMA R 40) designed for reliable protection with adjustable current settings ranging from 200 to 400 A. This breaker is engineered for compatibility with a wide range of industrial and commercial electrical systems, ensuring dependable performance and enhanced safety in demanding applications.
Technical Specification
- Function: Fixed three-pole moulded case circuit breaker with thermomagnetic release TMA R 40.
- Rated Current: 160 A (setting range 28...40 A).
- Rated Operational Voltage: 690 V AC / 750 V DC.
- Contact Configuration: 3 poles (3P) with front terminals.
- Rated Insulation Voltage (Ui): 1000 V.
- Rated Impulse Withstand Voltage (Uimp): 8 kV.
- Short-Circuit Breaking Capacity (Ics / Icu): Up to 150 kA (AC) and 85 kA (DC, 2 or 3 poles in series).
- Terminal Type and Size: Front bolt terminals for busbars 85–200 mm².
- Tightening Torque: 8 N·m.
- Mechanical Durability: 25,000 cycles.
Trusted By Customers Worldwide
"Specified by UK panel builders for dependable control." Controls Engineer, UK
Frequently Asked Questions
What is the rated current of the C.BREAKER TMAX XT4L?
The rated current is 160 A, with a setting range of 28...40 A.
What is the maximum operational voltage for this circuit breaker?
The maximum rated operational voltage is 690 V AC and 750 V DC.
What is the short-circuit breaking capacity of the TMAX XT4L?
The short-circuit breaking capacity is up to 150 kA (AC) and 85 kA (DC, 2 or 3 poles in series).
What type of terminals does the TMAX XT4L have?
It features front bolt terminals suitable for busbars sized 85–200 mm².
What is the tightening torque for the terminals?
The tightening torque is 8 N·m.
How many mechanical cycles can the TMAX XT4L endure?
The mechanical durability is rated for 25,000 cycles.
What standards and approvals does the TMAX XT4L conform to?
See the manufacturer's data sheet for standards and approvals.
| Manufacturer Part Number | 1SDA068369R1 |
|---|---|
| Barcode | 8015644022754 |
| HS Code | 85362090 |
| Country of Manufacture | Italy |
| Manufacturer | ABB |
| Number of Poles | 3 Pole |
| Amperage | 40A |
| Alternative Product SKU | XT4L 160 TMA 40-400 3p F F |
| Product Lead Time | Please contact us for a delivery time |
