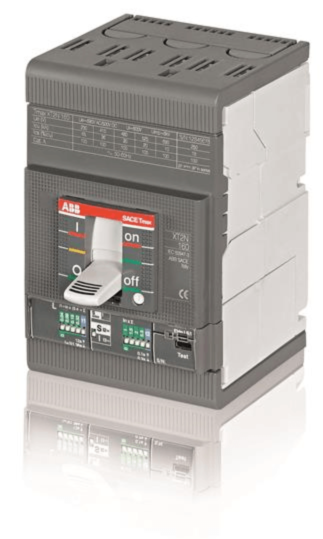

ABB XT2H 160 3 pole High MCCB Electronic trip unit I Ii=100A
MPN: 1SDA067889R1
Alt. SKU: XT2H 160 Ekip M-I In=100A 3p F F
Special Price
£731.63
£609.69
Regular Price
£1,125.58
Why Choose the Moulded Case Circuit Breaker [1SDA067889R1]
The TMAX XT2H 160 fixed three-pole circuit breaker features front terminals for straightforward installation and a solid-state release mechanism, ensuring precise and reliable protection. Designed for AC applications, this model includes the EKIP-M-I R electronic trip unit rated at 100 A, providing accurate current monitoring and enhanced system safety. Its robust construction and compatibility with standard switchgear make it suitable for a wide range of commercial and industrial electrical distribution systems.
Technical Specification
- Function: Moulded case circuit breaker with Ekip M-I solid-state release.
- Poles: Fixed three-pole (3P) configuration.
- Rated Current: 100 A.
- Rated Operational Voltage: 690 V AC.
- Rated Impulse Withstand Voltage: 8 kV.
- Rated Service Short-Circuit Breaking Capacity: Up to 100 kA at 220-240 V AC; decreasing to 15 kA at 690 V AC.
- Terminal Type: Front bolt terminals, suitable for busbars 32.5 to 100 mm².
- Tightening Torque: 6 N·m.
- Electrical Durability: 8,000 operations at 120 cycles per hour.
- Mechanical Durability: 25,000 operations at 240 cycles per hour.
Trusted By Customers Worldwide
"Specified by UK panel builders for dependable control." Controls Engineer, UK
Frequently Asked Questions
What is the function of the C.BREAKER TMAX XT2H 160?
It is a moulded case circuit breaker with an Ekip M-I solid-state release.
What is the rated current of this circuit breaker?
The rated current is 100 A.
What is the maximum rated operational voltage?
The maximum rated operational voltage is 690 V AC.
What is the breaking capacity of the circuit breaker?
It has a rated service short-circuit breaking capacity of up to 100 kA at 220-240 V AC, decreasing to 15 kA at 690 V AC.
What type of terminals does this circuit breaker have?
It features front bolt terminals suitable for busbars ranging from 32.5 to 100 mm².
What is the tightening torque for the terminals?
The tightening torque is 6 N·m.
What is the electrical durability of the circuit breaker?
It has an electrical durability of 8,000 operations at 120 cycles per hour.
| Manufacturer Part Number | 1SDA067889R1 |
|---|---|
| Barcode | 8015644017859 |
| Manufacturer | ABB |
| Number of Poles | 3 Pole |
| Amperage | 100A |
| Alternative Product SKU | XT2H 160 Ekip M-I In=100A 3p F F |
| Product Lead Time | Please contact us for a delivery time |
