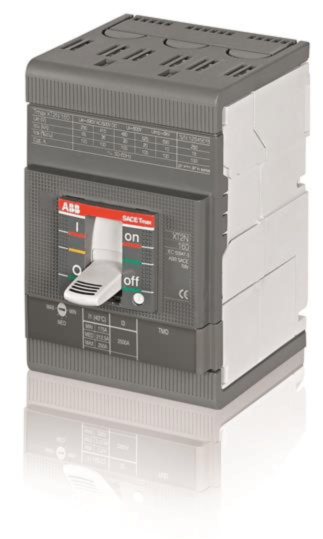

ABB XT2S 160 3 pole Standard MCCB Fixed Magnetic Release In=1A Ii=14A
MPN: 1SDA067760R1
Alt. SKU: XT2S 160 MF 1 Im=14 3p F F
Special Price
£357.74
£298.12
Regular Price
£550.37
Why Choose the Moulded Case Circuit Breaker [1SDA067760R1]
The C.BREAKER TMAX XT2S 160 is a fixed three-pole circuit breaker featuring front terminals for straightforward installation and maintenance. It incorporates a magnetic release mechanism with a rated current (Iu) of 1 A and a trip setting (I3) of 14 A, ensuring precise protection against short-circuits. Designed for reliable performance in industrial and commercial electrical systems, this breaker offers robust compatibility with standard switchgear assemblies.
Technical Specification
- Function: Fixed three-pole moulded case circuit breaker with magnetic release MF.
- Rated Current (In): 1 A.
- Rated Uninterrupted Current (Iu): 160 A.
- Rated Operational Voltage: 690 V AC / 500 V DC.
- Rated Impulse Withstand Voltage (Uimp): 8 kV.
- Contact Configuration: Three poles (3P) with front terminals and bolt connection.
- Main Circuit Connecting Capacity: Busbar 32.5 to 100 mm².
- Mechanical Durability: 25,000 cycles at 240 cycles per hour.
- Electrical Durability: 8,000 cycles at 120 cycles per hour.
- Tightening Torque: 6 N·m for terminals.
Trusted By Customers Worldwide
"Specified by UK panel builders for dependable control." Controls Engineer, UK
Frequently Asked Questions
What is the rated current of the C.BREAKER TMAX XT2S 160?
The rated current (I n) is 1 A.
What is the maximum operational voltage for this circuit breaker?
The rated operational voltage is 690 V AC / 500 V DC.
What is the mechanical durability of the TMAX XT2S 160?
The mechanical durability is 25,000 cycles at 240 cycles per hour.
What is the main circuit connecting capacity?
The main circuit connecting capacity is for busbars from 32.5 to 100 mm².
What is the tightening torque required for the terminals?
The tightening torque for the terminals is 6 N·m.
Is this circuit breaker suitable for outdoor use?
Please refer to the manufacturer's documentation for specific usage notes.
What standards and approvals does this product conform to?
See the manufacturer's data sheet for standards and approvals.
| Manufacturer Part Number | 1SDA067760R1 |
|---|---|
| Barcode | 8015644016562 |
| Manufacturer | ABB |
| Number of Poles | 3 Pole |
| Amperage | 1A |
| Alternative Product SKU | XT2S 160 MF 1 Im=14 3p F F |
| Product Lead Time | Please contact us for a delivery time |
