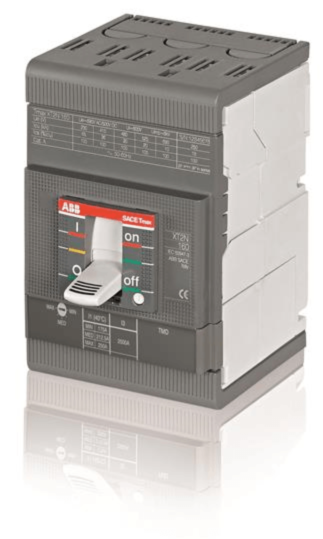

ABB XT2S 160 3 pole Standard MCCB Adjustable Thermal/Fixed Magnetic Release In=16A Ii=160A
MPN: 1SDA067738R1
Alt. SKU: XT2S 160 TMG 16-160 3p F F
Special Price
£295.78
£246.48
Regular Price
£455.04
Why Choose the Moulded Case Circuit Breaker [1SDA067738R1]
The C.BREAKER TMAX XT2S 160 is a fixed three-pole circuit breaker featuring front terminals for straightforward installation and maintenance. It incorporates a thermomagnetic release (TMG R) with adjustable current ratings from 16 to 160 A, providing reliable protection against overloads and short circuits. Designed for compatibility with a wide range of electrical systems, this breaker ensures precise tripping performance and long-term operational stability in industrial and commercial applications.
Technical Specification
- Function: Fixed three-pole moulded case circuit breaker with thermomagnetic release TMG.
- Rated Operational Voltage: 690 V AC, 500 V DC.
- Rated Current: 16 A (setting range 11.2...16 A).
- Number of Poles: 3P.
- Rated Impulse Withstand Voltage: 8 kV.
- Rated Short-Circuit Breaking Capacity (Ics): Up to 85 kA AC (220-240 V), 50 kA AC (380-440 V), 12 kA AC (690 V), 50 kA DC (250 V 2 poles, 500 V 3 poles in series).
- Insulation Voltage (Ui): 1000 V.
- Terminal Connection Type: Front terminals with M6 bolt; busbar connection 32.5 to 100 mm².
- Mechanical Durability: 25,000 cycles at 240 cycles/hour.
Trusted By Customers Worldwide
"Specified by UK panel builders for dependable control." Controls Engineer, UK
Frequently Asked Questions
What is the rated current of the C.BREAKER TMAX XT2S?
The rated current is 16 A, with a setting range of 11.2 to 16 A.
What type of release does this circuit breaker use?
It uses a thermomagnetic release TMG.
What is the rated operational voltage for this product?
The rated operational voltage is 690 V AC and 500 V DC.
What is the mechanical durability of the circuit breaker?
The mechanical durability is 25,000 cycles at 240 cycles per hour.
What is the terminal connection type for this circuit breaker?
The terminal connection type is front terminals with M6 bolts, and busbar connections range from 32.5 to 100 mm².
What is the rated short-circuit breaking capacity?
The rated short-circuit breaking capacity is up to 85 kA AC at 220-240 V, 50 kA AC at 380-440 V, 12 kA AC at 690 V, and 50 kA DC for 250 V (2 poles) and 500 V (3 poles in series).
What standards and approvals does this product conform to?
See the manufacturer's data sheet for standards and approvals.
| Manufacturer Part Number | 1SDA067738R1 |
|---|---|
| Barcode | 8015644016340 |
| HS Code | 85362090 |
| Country of Manufacture | Italy |
| Manufacturer | ABB |
| Number of Poles | 3 Pole |
| Amperage | 16A |
| Alternative Product SKU | XT2S 160 TMG 16-160 3p F F |
