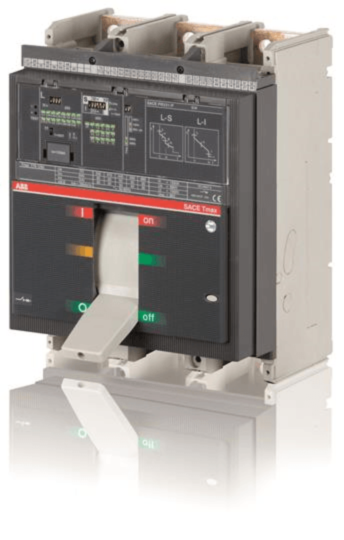

1sda064765r1 t7s 1000 ul pr232/p lsi in=1000a 3 pole abb mccb
MPN: 1SDA064765R1
Alt. SKU: T7S 1000 UL PR232/P LSI In1000A 3p FF
Why Choose the Moulded Case Circuit Breaker [1SDA064765R1]
The TMAX T7S 1000 three-pole circuit breaker features a fixed design with front terminals for straightforward installation and maintenance. It incorporates a lever operating mechanism for reliable manual control and a solid-state release unit (PR232/P-LSI R 1000) to ensure precise and consistent protection. Certified to UL and CSA standards, this breaker is suitable for demanding industrial and commercial applications requiring robust, dependable overcurrent protection.
Technical Specification
- Function: Three-pole moulded case circuit breaker with solid-state release.
- Rated Current: 1000 A.
- Rated Operational Voltage: 600 V AC.
- Rated Insulation Voltage (Ui): 1000 V.
- Rated Impulse Withstand Voltage (Uimp): 8 kV.
- Interrupting Rating (UL489): 65 kA @ 240 V AC, 50 kA @ 480 V AC, 25 kA @ 600 V AC.
- Terminal Type: Fixed front terminals.
- Mechanical Durability: 10,000 cycles at 60 cycles/hour.
- Weight: 9.7 kg.
Trusted By Customers Worldwide
"Specified by UK panel builders for dependable control." Controls Engineer, UK
Frequently Asked Questions
What is the rated current of the C.BREAKER TMAX T7S?
The rated current is 1000 A.
What is the maximum operational voltage for this circuit breaker?
The rated operational voltage is 600 V AC.
What type of terminals does the C.BREAKER TMAX T7S have?
It has fixed front terminals.
What is the interrupting rating for this circuit breaker?
The interrupting rating is 65 kA @ 240 V AC, 50 kA @ 480 V AC, and 25 kA @ 600 V AC.
How many mechanical cycles can this circuit breaker endure?
It has a mechanical durability of 10,000 cycles at 60 cycles/hour.
What is the weight of the C.BREAKER TMAX T7S?
The weight is 9.7 kg.
What standards does the C.BREAKER TMAX T7S comply with?
See the manufacturer's data sheet for standards and approvals.
| Manufacturer Part Number | 1SDA064765R1 |
|---|---|
| Barcode | 8015644676605 |
| Manufacturer | ABB |
| Number of Poles | 3 Pole |
| Amperage | 1000A |
| Alternative Product SKU | T7S 1000 UL PR232/P LSI In1000A 3p FF |
| Product Lead Time | Please contact us for a delivery time |
