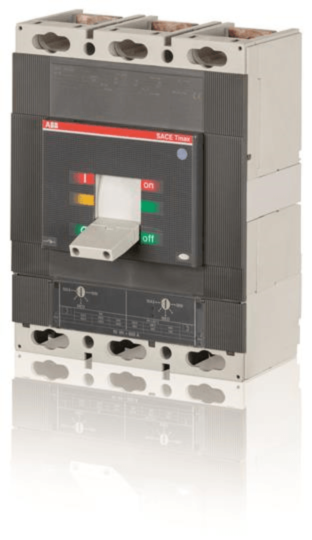

1sda061661r1 t6n 800 ul/csa tma 800-8000 3 pole abb mccb
MPN: 1SDA061661R1
Alt. SKU: T6N 800 UL/CSA TMA 800-8000 3p F F
Why Choose the Moulded Case Circuit Breaker [1SDA061661R1]
The TMAX T6N 800 UL/CSA fixed three-pole circuit breaker features front terminals and a thermomagnetic release, model TMA R 800. It offers a rated current range of 4000 to 8000 A, ensuring reliable protection for high-capacity electrical installations. Designed for compatibility with UL and CSA standards, this breaker provides robust performance and precise fault interruption in demanding industrial and commercial applications.
Technical Specification
- Function: Moulded Case Circuit Breaker with thermomagnetic release (TMA).
- Rated Current (In): 800 A.
- Number of Poles: 3 poles (three-phase).
- Rated Operational Voltage: 600 V AC / 600 V DC.
- Rated Insulation Voltage (Ui): 1000 V.
- Rated Impulse Withstand Voltage (Uimp): 8 kV.
- Ultimate Short-Circuit Breaking Capacity (Icu): Up to 65 kA dependent on voltage and configuration.
- Terminal Type: Fixed front terminals.
- Mechanical Durability: 20,000 operating cycles at 120 cycles per hour.
- Weight: 9.5 kg.
Trusted By Customers Worldwide
"Specified by UK panel builders for dependable control." Controls Engineer, UK
Frequently Asked Questions
What is the rated current of the C.BREAKER TMAX T6N 800?
The rated current (I n) of the C.BREAKER TMAX T6N 800 is 800 A.
How many poles does this circuit breaker have?
This circuit breaker has 3 poles, suitable for three-phase systems.
What is the maximum short-circuit breaking capacity?
The ultimate short-circuit breaking capacity (I cu) is up to 65 kA, depending on voltage and configuration.
What is the rated operational voltage for this breaker?
The rated operational voltage is 600 V AC / 600 V DC.
What type of terminals does the C.BREAKER TMAX T6N 800 have?
This circuit breaker features fixed front terminals.
What is the mechanical durability of this circuit breaker?
The mechanical durability is rated for 20,000 operating cycles at 120 cycles per hour.
What standards does this product conform to?
See the manufacturer's data sheet for standards and approvals.
| Manufacturer Part Number | 1SDA061661R1 |
|---|---|
| Barcode | 8015644642006 |
| Manufacturer | ABB |
| Number of Poles | 3 Pole |
| Amperage | 800A |
| Alternative Product SKU | T6N 800 UL/CSA TMA 800-8000 3p F F |
| Product Lead Time | Please contact us for a delivery time |
