1sda059463r1 t5s 400mcp-ul csa pr221ds-i in=400 3 pole abb mccb

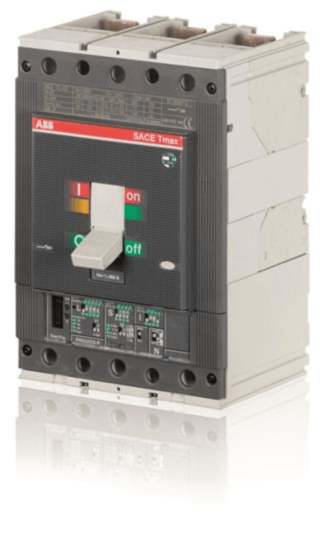

ABB molded case circuit breaker t5s 400mcp-ul csa pr221ds-i in=400 3 pole f f rating (@400v) icu 50ka, ics 100%. c.breaker tmax t5s 400 fixed three-pole with front terminals and solid-state release in ac pr221ds-i r 400

dimensions
product net width: 140 mm
product net height: 205 mm
product net depth: 103.5 mm
product net weight: 3.25 kg

additional information
mechanical durability:
20000 cycle
120 cycles per hour
number of poles: 3
power loss: at rated operating conditions per pole 16,5 w
product main type: sace tmax t
product name: molded case circuit breaker
product type: cb
rated current (in): main circuit 400 a
rated impulse withstand voltage (uimp): 8 kv
rated insulation voltage (ui): 1000 v
rated operational voltage: 600 v ac
rated ultimate short-circuit breaking capacity (icu): (500 v dc) 2 poles in series 35 ka
rated uninterrupted current (iu): 400 a
release type: el
standards: ul
sub-type: t5
suitable for: t5
suitable for product class: molded case circuit breakers
terminal connection type:
fixed circuit-breakers
front
test voltage max (utest): 3500 v
version: f
