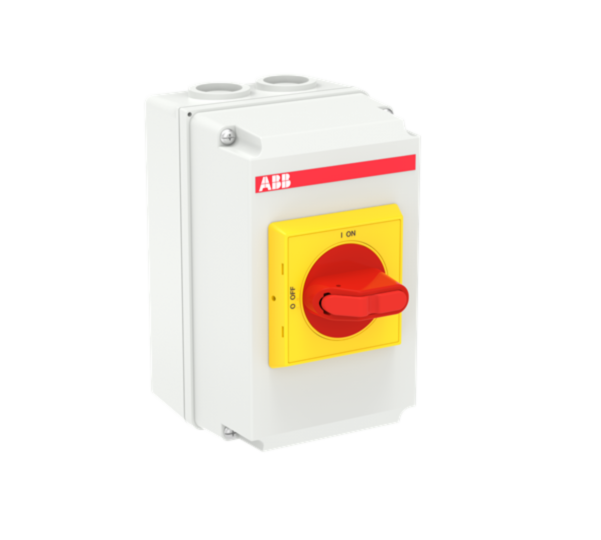

1SCA131852R1001 ABB OTDCP32SA22MD 4 Pole 1000VDC 32A Switch Disconnector
MPN: 1SCA131852R1001
Alt. SKU: OTDCP32SA22MD
Why Choose the OTDCP32SA22MD [1SCA131852R1001]
The OTDCP series features a robust enclosure constructed from glass-reinforced polycarbonate, offering enhanced durability and impact resistance. It is UV stabilised and rated to IP65, providing reliable protection against low-pressure water jets, making it suitable for both indoor and outdoor installations. Cable entries are threaded and include knock-out holes to accommodate two parallel cables at both the top and bottom, ensuring flexible wiring options. The handle is designed to accept up to three padlocks for secure isolation, with an interlocked cover that can only be overridden using a specialised tool. This enclosure is ideal for applications such as solar panel systems and DC battery installations, where secure, weatherproof protection is essential.
Technical Specification
- Rated Operational Voltage: 1000 V DC.
- Rated Operational Current: 32 A (DC-21B, 1000 V).
- Number of Poles: 4P.
- Degree of Protection: IP65 (dust tight and protected against low-pressure water jets).
- Enclosure Material: UV-protected, glass reinforced polycarbonate.
- Rated Insulation Voltage: 1000 V (IEC/EN 60664-1).
- Rated Impulse Withstand Voltage: 8 kV.
- Terminal Type and Capacity: Screw terminals for 2.5 to 16 mm² conductor cross-section.
- Mounting Type: Base mounting.
- Special Functions: Suitable for solar applications.
Trusted By Customers Worldwide
"Specified by UK panel builders for dependable control." Controls Engineer, UK
Frequently Asked Questions
What is the rated operational voltage of the OTDCP enclosure?
The rated operational voltage is 1000 V DC.
What is the maximum rated operational current for this product?
The maximum rated operational current is 32 A (DC-21B, 1000 V).
What type of mounting is required for the OTDCP enclosure?
The enclosure is designed for base mounting.
What is the degree of protection for the enclosure?
The enclosure has an IP65 rating, making it dust tight and protected against low-pressure water jets.
What is the cable capacity for the terminal type?
The terminals accommodate conductor cross-sections from 2.5 to 16 mm².
Is the enclosure suitable for outdoor use?
Yes, the enclosure is UV protected and suitable for both outdoor and indoor use.
What applications is the OTDCP enclosure typically used for?
Typical applications include solar panels and DC batteries.
| Alternative Product SKU | OTDCP32SA22MD |
|---|---|
| Manufacturer Part Number | 1SCA131852R1001 |
| Manufacturer | ABB |
| Barcode | 6417019610863 |
| Number of Poles | 4 Pole |
| Max. rated operation voltage Ue AC | 1000V |
| Number of switches | 1 |
| Rated operating voltage | 1000 |
| Device construction | Complete device in housing |
| Type of control element | Turn button |
| Colour control element | Red |
| Rated permanent current Iu | 32A |
| Voltage | 1000VDC |
| Degree of protection (IP) | IP65 |
| Type of electric connection | Screw connection |
| Packed Quantity | 1 |
| Height | 167mm |
| Width | 108mm |
| Depth | 142mm |
| HS Code | 85365080 |
| Country of Manufacture | Finland |
