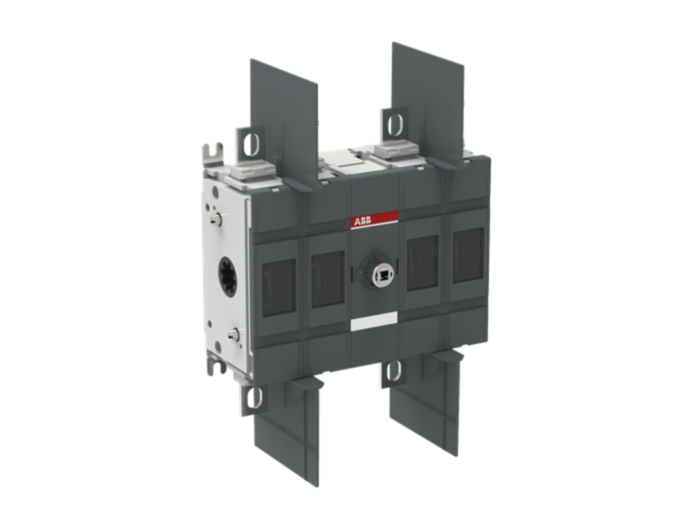

1SCA125824R1001 ABB OTDC100E22 4 Pole 1000VDC 100A Switch Disconnector
MPN: 1SCA125824R1001
Alt. SKU: OTDC100E22
Special Price
£675.46
£562.88
Regular Price
£1,039.16
Why Choose the OTDC100E22 [1SCA125824R1001]
The OTDC100E22 is a DC switch-disconnector rated at 1000 V DC and 100 A, designed for secure base mounting. It includes a terminal bolt kit for reliable electrical connections. Please note that the handle and shaft are supplied separately and must be ordered in addition to the unit. This switch-disconnector is suitable for isolating DC circuits in a range of industrial and commercial applications, ensuring safe and efficient operation.
Technical Specification
- Function: DC switch-disconnector for photovoltaic applications, 2 circuits, 4 poles.
- Rated Operational Voltage: 1000 V DC.
- Rated Operational Current: 100 A (IEC 60947-3, DC-21B category).
- Contact Configuration: Double circuit, 4a, 4c with mechanism between poles.
- Insulation and Impulse Voltage Ratings: Rated insulation voltage 1500 V, rated impulse withstand voltage 12 kV.
- Degree of Protection: Front IP20.
- Terminal Type and Size: Lug terminals, 19.5 mm width.
- Mounting Type: Base mounting.
- Operating Torque: Positive opening torque 5 to 8 N·m.
- Short-Circuit Withstand Capacity: 10 kA for 1 s at 1000 V DC.
Trusted By Customers Worldwide
"Specified by UK panel builders for dependable control." Controls Engineer, UK
Frequently Asked Questions
What is the function of the OTDC100E22?
The OTDC100E22 is a DC switch-disconnector designed for photovoltaic applications, capable of handling 2 circuits with 4 poles.
What are the rated operational voltage and current for this product?
The rated operational voltage is 1000 V DC and the rated operational current is 100 A.
What is the degree of protection for the OTDC100E22?
The degree of protection is IP20 for the front of the device.
What type of terminals does the OTDC100E22 use?
The switch uses lug terminals with a width of 19.5 mm.
How is the OTDC100E22 mounted?
The OTDC100E22 is designed for base mounting.
What is the short-circuit withstand capacity of this switch?
The short-circuit withstand capacity is 10 kA for 1 second at 1000 V DC.
Are there any specific standards or approvals for this product?
See the manufacturer's data sheet for standards and approvals.
| Alternative Product SKU | OTDC100E22 |
|---|---|
| Manufacturer Part Number | 1SCA125824R1001 |
| Manufacturer | ABB |
| Barcode | 6417019558202 |
| Number of Poles | 4 Pole |
| Number of switches | 1 |
| Rated operating voltage | 1000 |
| Device construction | Built-in device fixed built-in technique |
| Type of control element | Other |
| Rated permanent current Iu | 100A |
| Voltage | 1000VDC |
| Degree of protection (IP) | IP20 |
| Nema Rating | 1 |
| Type of electric connection | Bolt connection |
| Packed Quantity | 1 |
| Height | 262mm |
| Width | 185.4mm |
| Depth | 90.5mm |
| HS Code | 85365080 |
| Country of Manufacture | Finland |
