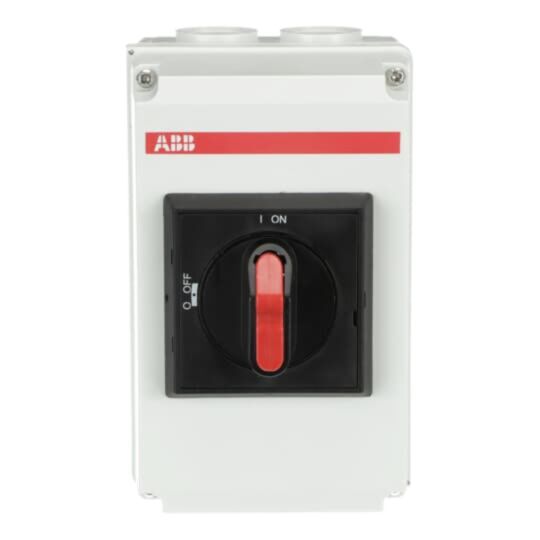

1SCA125155R1001 ABB OTDCP32S12M 3 Pole 1000VDC 32A Switch Disconnector
MPN: 1SCA125155R1001
Alt. SKU: OTDCP32S12M
Special Price
£147.66
£123.05
Regular Price
£227.17
Why Choose the OTDCP32S12M [1SCA125155R1001]
The OTDCP series enclosure is constructed from robust, glass-reinforced polycarbonate, offering excellent durability and UV resistance for both indoor and outdoor installations. It features an IP65 rating, providing reliable protection against low-pressure water jets. Cable entries are threaded and include knockout holes to accommodate two parallel cables from both the top and bottom, ensuring versatile wiring options. The handle is designed to accept up to three padlocks for enhanced security, and the cover incorporates an interlock mechanism that can be overridden using a specialised tool. This enclosure is ideally suited for applications such as solar panel systems and DC battery installations.
Technical Specification
- Rated Operational Voltage: 1000 V DC.
- Rated Operational Current: 32 A (DC-21B, 1000 V).
- Contact Configuration: 3 poles, selector handle with padlock facility.
- Insulation and Impulse Rating: Rated insulation voltage 1000 V; impulse withstand voltage 8 kV.
- Degree of Protection: IP65, suitable for indoor and outdoor use.
- Terminal Type and Capacity: Screw clamp terminals for 2.5 to 16 mm² conductors.
- Mounting Type: Base mounting.
- Enclosure Material: UV-protected, glass reinforced polycarbonate plastic.
- Cable Entries: Threaded knock-out holes for 2 cables top and bottom (2xM20 each side).
Trusted By Customers Worldwide
"Specified by UK panel builders for dependable control." Controls Engineer, UK
Frequently Asked Questions
What is the rated operational voltage of the OTDCP enclosure?
The rated operational voltage is 1000 V DC.
What is the maximum rated operational current for the OTDCP enclosure?
The maximum rated operational current is 32 A (DC-21B, 1000 V).
What type of terminals does the OTDCP enclosure use?
The enclosure uses screw clamp terminals for conductors ranging from 2.5 to 16 mm².
How is the OTDCP enclosure mounted?
The enclosure is designed for base mounting.
What is the degree of protection for the OTDCP enclosure?
The enclosure has an IP65 rating, making it suitable for both indoor and outdoor use.
Can the OTDCP enclosure be used for solar panel applications?
Yes, typical applications include solar panels and DC batteries.
What safety features does the OTDCP enclosure have?
The enclosure features a padlockable handle for three padlocks and an interlocked cover that can be defeated with a special tool.
| Alternative Product SKU | OTDCP32S12M |
|---|---|
| Manufacturer Part Number | 1SCA125155R1001 |
| Manufacturer | ABB |
| Barcode | 6417019554129 |
| Number of Poles | 3 Pole |
| Max. rated operation voltage Ue AC | 1000V |
| Number of switches | 1 |
| Rated operating voltage | 1000 |
| Device construction | Complete device in housing |
| Type of control element | Turn button |
| Colour control element | Black |
| Rated permanent current Iu | 32A |
| Voltage | 1000VDC |
| Degree of protection (IP) | IP65 |
| Type of electric connection | Screw connection |
| Packed Quantity | 1 |
| Height | 150mm |
| Width | 95mm |
| Depth | 95mm |
| HS Code | 85365080 |
| Country of Manufacture | Finland |
