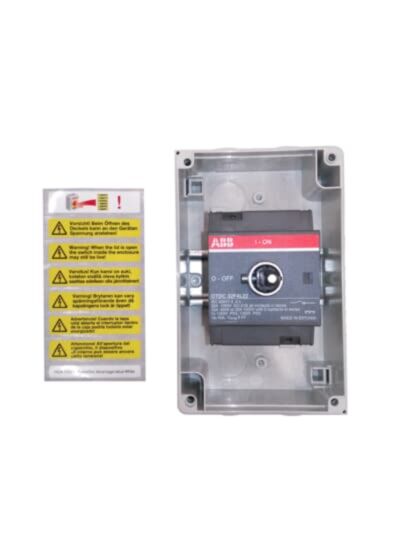

1SCA125090R1001 ABB OTDCP32SA22M 4 Pole 1000VDC 32A Switch Disconnector
MPN: 1SCA125090R1001
Alt. SKU: OTDCP32SA22M
Why Choose the OTDCP32SA22M [1SCA125090R1001]
The OTDCP series features a robust enclosure constructed from rigid, glass-reinforced polycarbonate, offering excellent durability and impact resistance. It is UV stabilised and rated to IP65, providing reliable protection against low-pressure water jets and suitable for both indoor and outdoor installations. Cable entries are threaded with knock-out holes accommodating two parallel cables at both the top and bottom, ensuring flexible wiring options. The handle is designed to accept up to three padlocks for enhanced security, while the cover incorporates an interlock mechanism that can be overridden using a specialised tool. This enclosure is ideal for applications such as solar panel systems and DC battery installations, where secure, weatherproof protection is essential.
Technical Specification
- Rated Operational Voltage: 1000 V DC.
- Rated Operational Current (DC-21B): 32 A.
- Number of Poles: 4P.
- Degree of Protection: IP65 (dust tight and protected against low-pressure water jets).
- Enclosure Material: UV protected, glass reinforced polycarbonate suitable for indoor and outdoor use.
- Rated Insulation Voltage (Ui): 1000 V (IEC/EN 60664-1).
- Rated Impulse Withstand Voltage (Uimp): 8 kV.
- Terminal Type and Size: Screw clamp terminals, 2.5 to 16 mm² capacity.
- Cable Entry: Threaded knockouts for 2 parallel cables top and bottom (2xM20 each side).
- Handle: Padlockable selector handle with provision for three padlocks.
Trusted By Customers Worldwide
"Specified by UK panel builders for dependable control." Controls Engineer, UK
Frequently Asked Questions
What is the degree of protection for the OTDCP series enclosure?
The enclosure has a degree of protection rated at IP65, making it dust tight and protected against low-pressure water jets.
What is the maximum rated operational voltage for this product?
The maximum rated operational voltage is 1000 V DC.
What is the cable capacity for the terminals?
The terminal type is screw clamp, with a capacity of 2.5 to 16 mm².
Can the enclosure be used for outdoor applications?
Yes, the enclosure is UV protected and suitable for both indoor and outdoor use.
How many padlocks can be used with the handle?
The handle is padlockable and can accommodate up to three padlocks.
What types of applications is the OTDCP series typically used for?
Typical applications include solar panels and DC batteries.
What should I refer to for standards and approvals of this product?
See the manufacturer's data sheet for standards and approvals.
| Alternative Product SKU | OTDCP32SA22M |
|---|---|
| Manufacturer Part Number | 1SCA125090R1001 |
| Manufacturer | ABB |
| Barcode | 6417019553467 |
| Number of Poles | 4 Pole |
| Max. rated operation voltage Ue AC | 1000V |
| Number of switches | 1 |
| Rated operating voltage | 1000 |
| Device construction | Complete device in housing |
| Type of control element | Turn button |
| Colour control element | Red |
| Rated permanent current Iu | 32A |
| Voltage | 1000VDC |
| Degree of protection (IP) | IP65 |
| Type of electric connection | Screw connection |
| Packed Quantity | 1 |
| Height | 150mm |
| Width | 95mm |
| Depth | 95mm |
| HS Code | 85365080 |
| Country of Manufacture | Finland |
