srn7525k abb electrical enclosure with back plate 700x500x250mm
MPN: SRN7525K
Alt. SKU: SR2-SRN7525K
Why Choose the SR2-SRN7525K [SRN7525K]

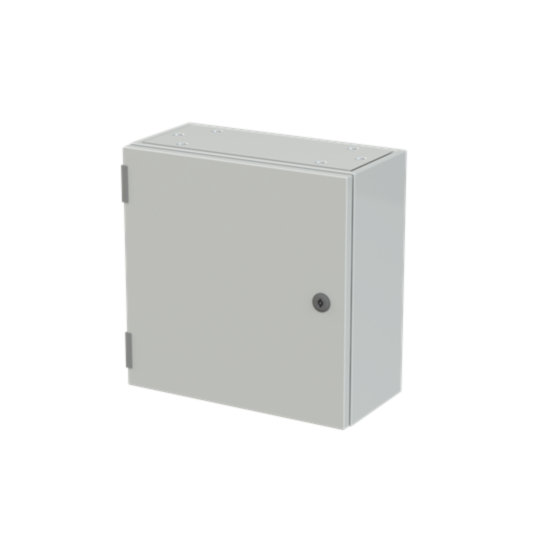

Enclosure with blind door + back plate 700x500x250mm (HxWxD)
Technical Specification
- Dimensions (HxWxD): 700 x 500 x 250 mm.
- Construction Material: Galvanized steel.
- Enclosure Type: NEMA Type 3R.
- Door Type: Single blind door with opaque finish.
- Impact Resistance: IK10 rated.
- Number of Flange Openings: 2.
- Weight: 23.5 kg.
- Accessories: Available.
Trusted By Customers Worldwide
"Specified by UK panel builders for dependable control." Controls Engineer, UK
Frequently Asked Questions
What are the dimensions of the enclosure?
The dimensions of the enclosure are 700 x 500 x 250 mm (HxWxD).
What material is the enclosure made from?
The enclosure is constructed from galvanized steel.
What type of enclosure is this?
This is a NEMA Type 3R enclosure.
What is the impact resistance rating?
The enclosure has an impact resistance rating of IK10.
How many flange openings does the enclosure have?
The enclosure has 2 flange openings.
What is the weight of the enclosure?
The weight of the enclosure is 23.5 kg.
Are there any accessories available for this enclosure?
Yes, accessories are available for this enclosure.
| Manufacturer Part Number | SRN7525K |
|---|---|
| Manufacturer | ABB |
| Material | Sheet Steel |
| Degree of protection (IP) | IP65 |
| Depth | 250mm |
| Width | 500mm |
| Height | 700mm |
| Alternative Product SKU | SR2-SRN7525K |
| Barcode | 8015646753434 |
