srn10625k abb electrical enclosure with back plate 1000x600x250mm
MPN: SRN10625K
Alt. SKU: SR2-SRN10625K
Why Choose the SR2-SRN10625K [SRN10625K]

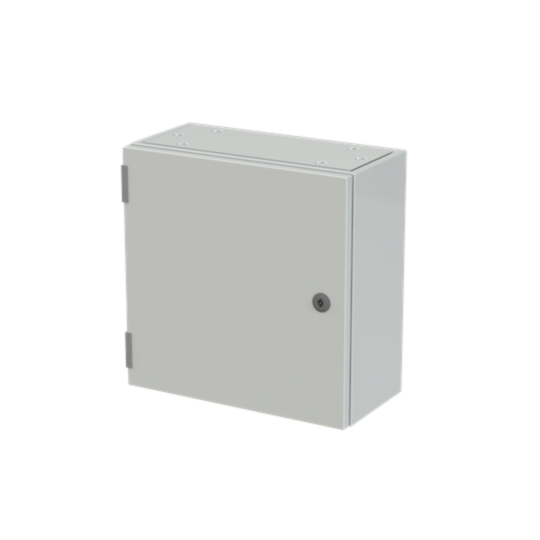

Enclosure with blind door + back plate 1000x600x250mm (HxWxD)
Technical Specification
- Dimensions (HxWxD): 1000 x 600 x 250 mm.
- Material: Galvanized steel construction for durability.
- Protection Rating: NEMA Type 3R, suitable for outdoor environments.
- Impact Resistance: IK10 rated for high mechanical protection.
- Door Type: Single opaque blind door with back plate.
- Weight: 37.4 kg.
- Flange Openings: 2 flange openings for cable entry.
Trusted By Customers Worldwide
"Specified by UK panel builders for dependable control." Controls Engineer, UK
Frequently Asked Questions
What are the dimensions of the enclosure?
The enclosure dimensions are 1000 mm (H) x 600 mm (W) x 250 mm (D).
What material is the enclosure made of?
The enclosure is constructed from galvanized steel for enhanced durability.
What is the protection rating of the enclosure?
The enclosure has a NEMA Type 3R protection rating, making it suitable for outdoor environments.
What is the impact resistance rating?
The enclosure is IK10 rated, providing high mechanical protection.
How heavy is the enclosure?
The weight of the enclosure is 37.4 kg.
How many flange openings does the enclosure have?
There are 2 flange openings for cable entry.
What type of door does the enclosure have?
The enclosure features a single opaque blind door with a back plate.
| Manufacturer Part Number | SRN10625K |
|---|---|
| Manufacturer | ABB |
| Material | Sheet Steel |
| Degree of protection (IP) | IP65 |
| Depth | 250mm |
| Width | 600mm |
| Height | 1000mm |
| Alternative Product SKU | SR2-SRN10625K |
| Barcode | 8015646753519 |
