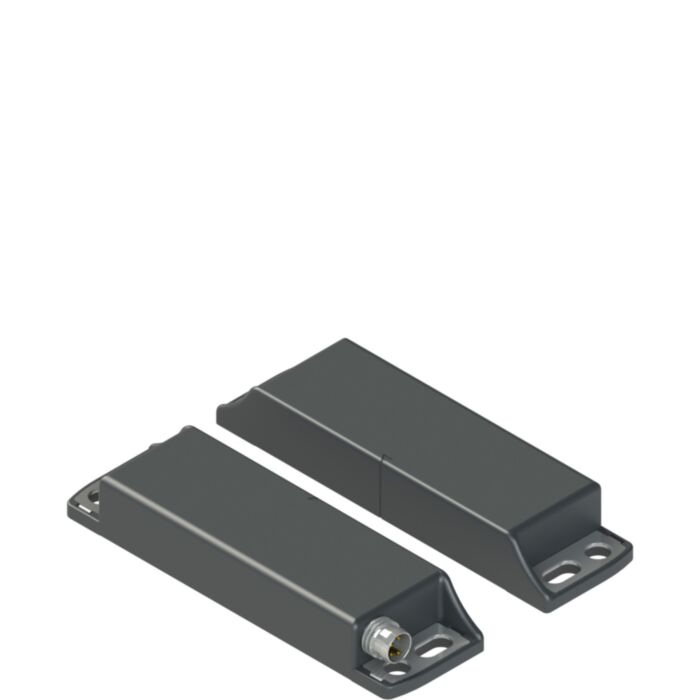

SR BD40ALK-B01F Pizzato Magnetic safety sensor complete with actuator

Why Choose the Pizzato SRBD40ALK-B01F Safety Magnetic Sensor?

The Pizzato SRBD40ALK-B01F is a high-reliability coded magnetic safety sensor designed for machine guarding and industrial safety interlocking applications. Manufactured by Pizzato Elettrica, it belongs to the robust SR-B series, engineered for high-performance safety monitoring in automated machinery environments.

This model is supplied as a complete safety sensor system with actuator, ensuring precise and tamper-resistant detection of protective doors, covers and machine guards. Its coded magnetic technology ensures that the sensor only operates when the correct actuator is present, improving overall safety integrity in industrial systems.

The SRBD40ALK-B01F is widely used in demanding industrial environments where reliable non-contact detection is required. With IP67 protection and a rugged thermoplastic housing, it delivers consistent performance even in harsh conditions such as dust, vibration and moisture exposure.

Key Advantages

• Reliable coded magnetic safety detection for machine guarding systems.
• Supplied as a complete sensor + actuator set.
• High resistance to dust, water and industrial contaminants (IP67).
• Non-contact operation reduces wear and increases service life.
• Tamper-resistant switching with coded magnetic system.
• Suitable for safety interlock applications in industrial automation.

Key Features

• Pizzato SR-B series coded magnetic safety sensor.
• Model: SRBD40ALK-B01F.
• Coded magnetic actuation system with actuator included.
• Typical contact configuration: 2NC safety outputs.
• Actuation distance: approx. 5 mm.
• M8 4-pin electrical connection (standard configuration).
• Technopolymer housing with reinforced mounting plates.
• IP67 protection rating for harsh environments.

Technical Specifications

• Manufacturer: Pizzato Elettrica
• Series: SR-B Coded Magnetic Safety Sensors
• Model: SRBD40ALK-B01F
• Product type: Safety magnetic sensor with actuator
• Contact configuration: 2NC
• Actuation type: Coded magnetic system
• Actuation distance: ~5 mm
• Protection rating: IP67
• Housing material: Industrial thermoplastic
• Operating temperature: -20°C to +80°C
• Electrical connection: M8 4-pin connector
• Mounting type: Machine / panel mounting
• Included: Sensor + actuator kit

Reliable Safety Performance for Industrial Automation

The Pizzato SRBD40ALK-B01F ensures safe machine operation by monitoring the position of guards, doors and protective panels. It only switches when the matched coded actuator is present, preventing bypassing or tampering in safety-critical systems.

Its non-contact sensing principle eliminates mechanical wear, significantly improving durability and reducing maintenance requirements. The IP67-rated enclosure ensures stable operation even in environments exposed to dust, water spray and vibration. {index=1}

Typical Applications

• Machine safety interlock systems.
• Protective doors and safety guards.
• Industrial automation systems.
• Packaging and production machinery.
• CNC machines and robotic systems.
• OEM machine building applications.

Trusted in Industrial Safety Systems Worldwide

Pizzato SR-B series safety magnetic sensors are widely used in industrial automation for reliable machine guarding, tamper-resistant detection and high safety integrity.
