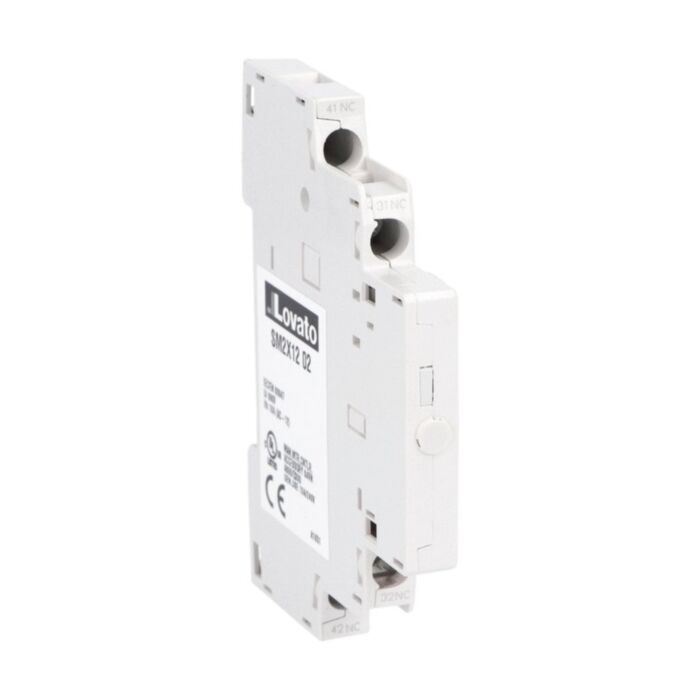

SM2X1202 Lovato side mount auxiliary contact 2nc
MPN: SM2X1202
Special Price
£10.27
£8.56
Regular Price
£17.11
Why Choose the SM2X1202?
Boost your control set-up with the Lovato SM2X1202 add-on auxiliary contact accessory. This side-mount 2NC module expands available signalling on compatible SM2R and SM3R devices without increasing panel footprint. Designed for straightforward integration, the SM2X1202 provides two dependable normally closed circuits, giving installers a quick, tidy way to add auxiliary functionality where it’s needed most.
Built for demanding environments, it offers a rated insulation voltage Ui of 690 V and a 4 kV impulse withstand, with a mechanical life of 100000 cycles. Operating from -20 to +70 °C and up to 3000 m altitude, it meets IEC/EN 60947-1, IEC/EN 60947-5-1, UL508 and CSA C22.2 n° 14, supporting dependable performance and broad compliance in industrial assemblies.
Key Benefits
- Side-mount add-on design saves space on SM2R/SM3R devices.
- Provides two normally closed contacts for expanded signalling capacity.
- Rated insulation voltage Ui 690 V for robust dielectric strength.
- 4 kV impulse withstand rating improves transient resilience.
- Mechanical life rated to 100000 cycles for long service.
- Reliable operation from -20 to +70 °C environments.
- Conforms to IEC/EN 60947-1 and 60947-5-1, UL508, CSA standards.
- Lightweight 40 g, simple handling during installation.
Technical Specification
- Product type designation: SM2X
- Rated insulation voltage Ui (IEC/EN): 690 V
- Rated impulse withstand voltage Uimp: 4 kV
- Terminal tightening torque: 1 to 1 Nm
- Weight: 40 g
- Mechanical life: 100000 cycles
- Operating temperature: -20 to +70 °C
- Storage temperature: -50 to +80 °C
- Max altitude: 3000 m
What’s Included
- Lovato SM2X1202 add-on auxiliary contact, side-mount 2NC module
- Online manufacturer datasheet (via product link)
Applications
- Side-mount auxiliary contact expansion on SM2R and SM3R devices
- Projects requiring two normally closed auxiliary contacts
- Industrial assemblies needing compliance with IEC/EN 60947, UL508, CSA
- Installations operating between -20 to +70 °C and up to 3000 m altitude
Frequently Asked Questions
Is the Lovato SM2X1202 compatible with my device?
It is an add-on auxiliary contact for SM2R... and SM3R... devices and mounts on the side.
What contact configuration does the SM2X1202 provide?
It offers 2NC (two normally closed) auxiliary contacts.
What are the key electrical ratings?
Rated insulation voltage Ui is 690 V and rated impulse withstand voltage Uimp is 4 kV.
What operating conditions does it support?
Operating temperature is -20 to +70 °C; storage -50 to +80 °C; maximum altitude 3000 m.
Which standards does the SM2X1202 conform to?
IEC/EN 60947-1, IEC/EN 60947-5-1, UL508 and CSA C22.2 n° 14.
Safety note: Isolate power before installation or maintenance. Tighten terminals to 1 to 1 Nm and follow applicable standards and site procedures.
| Manufacturer Part Number | SM2X1202 |
|---|---|
| Packed Quantity | 1 |
| Barcode | 8013975219942 |
| HS Code | 85362010 |
| Manufacturer | Lovato |
