SM1Z1712P - SURF.ENCLOSURE FOR SM1P 100MM C/W BUTTON

Why Choose the SM1Z1712P?

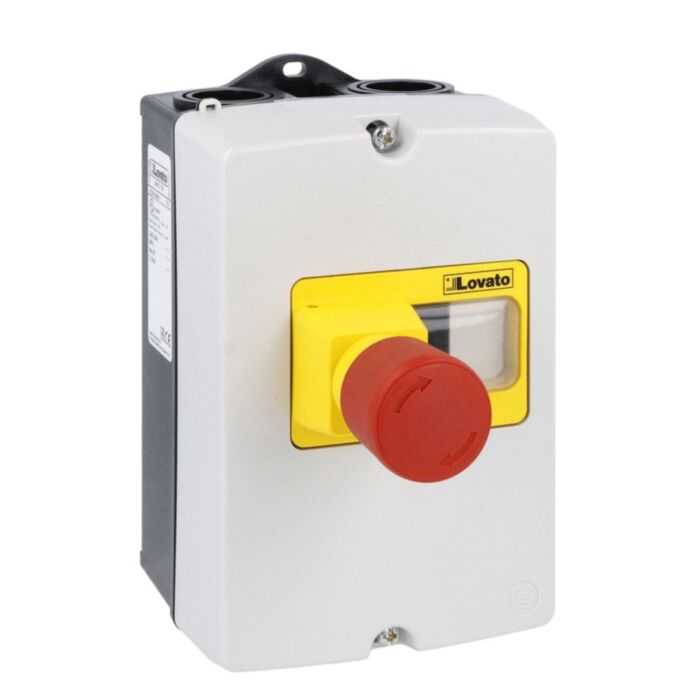

Designed for dependable protection and clear operator control, the Lovato SM1Z1712P surface mount enclosure is an accessory built for SM1P… devices. Rated IP65 (4X) and 100 mm wide, it shields against dust and water ingress while integrating a dedicated emergency stop button. The compact, surface-mounted design helps simplify panel upgrades and retrofits, keeping critical functions accessible in demanding industrial environments.

Engineered for longevity and compliance, the SM1Z designation delivers 100000 cycles mechanical life and reliable operation from -25 to +60 °C, with storage from -50 to +80 °C. Weighing 345 g, it is straightforward to handle during installation. The enclosure conforms to IEC/EN 60947-1 and IEC/EN 60947-5-1, and is also recognised under UL508 and CSA C22.2 n° 14, supporting consistent performance across control applications.

Key Benefits

• IP65 (4X) protection guards against dust and water ingress.
• Integrated emergency stop button for immediate operator intervention.
• Compatible with SM1P… devices for straightforward integration.
• 100000 cycles mechanical life supports long-term reliability.
• Operates from -25 to +60 °C for varied environments.
• Compact 100 mm width aids space-constrained panel layouts.
• Conforms to IEC/EN 60947, UL508, and CSA standards.
• Lightweight 345 g for easier handling and mounting.

Technical Specification

• Product type designation: SM1Z
• Weight: 345 g
• Mechanical life: 100000 cycles
• Operating temperature: -25 to +60 °C
• Storage temperature: -50 to +80 °C

What’s Included

• Surface mount enclosure, IP65 (4X), 100 mm width
• Integrated emergency stop button
• Manufacturer datasheet (download)

Applications

• SM1P… device installations requiring an emergency stop interface
• Industrial control panels needing IP65 (4X) surface-mounted protection
• Machinery and equipment enclosures in dusty or wet areas
• Retrofit upgrades where a 100 mm wide enclosure is preferred

Safety note: Ensure installation and wiring are performed by qualified personnel, and verify compliance with applicable regulations and machine safety requirements before use.
