SM1X3241R - RIGID CONNECTIONS SM1R WITH BF26-38A
MPN: SM1X3241R
Special Price
£12.37
£10.31
Regular Price
£20.62
Why Choose the SM1X3241R?

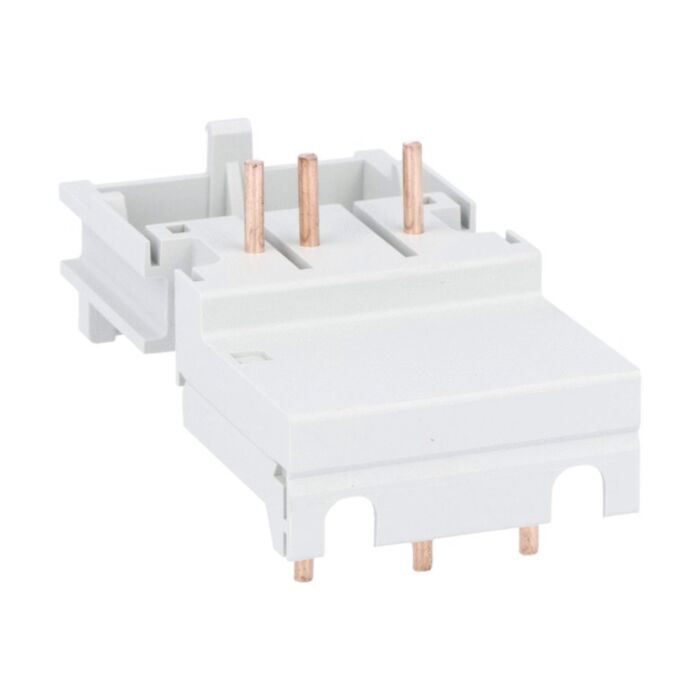

The Lovato SM1X3241R is a rigid SM1 breaker–contactor connection accessory designed to link an SM1R motor protection breaker with BF26...38A contactors. As part of the SM1X series, this dedicated connector provides a direct, pre‑engineered interface between matched devices. Weighing just 45 g, it offers a compact, tidy solution for panel assembly while preserving manufacturer‑specified compatibility.
Engineered as a rigid connection accessory for SM1R…, the SM1X3241R aligns with key international standards, including IEC/EN 60947-1 and IEC/EN 60947-5-1, plus UL508 and CSA C22.2 n° 14. Backed by Lovato’s sustainability certification, it is ideal for OEMs and panel builders needing consistent, code‑aligned integration of motor protection breakers and contactors within coordinated assemblies.
Key Benefits
- Rigid connection between SM1R breaker and BF26...38A contactors.
- Pre‑engineered interface for consistent, manufacturer‑matched assembly.
- Lightweight 45 g component for compact, tidy panel layouts.
- Conforms to IEC/EN 60947-1 and IEC/EN 60947-5-1.
- Recognised under UL508 and CSA C22.2 n° 14.
- SM1X series accessory supports correct product pairing.
- Sustainability certification supports responsible specification.
Technical Specification
- Product type designation: SM1X
- Weight: 45 g
What’s Included
- Rigid SM1X breaker–contactor connection (SM1X3241R)
- Basic installation leaflet
- Manufacturer packaging
Applications
- Connecting SM1R motor protection breakers to BF26...38A contactors
- Motor starter assemblies and control panels
- OEM and panel‑builder installations using SM1X accessories
- Maintenance replacement of existing SM1X rigid connections
Frequently Asked Questions
What equipment is the Lovato SM1X3241R designed to connect?
It links an SM1R motor protection breaker with BF26...38A contactors.
Does the SM1X3241R meet recognised standards?
Yes, it conforms to IEC/EN 60947-1 and 60947-5-1, and is recognised under UL508 and CSA C22.2 n° 14.
What is the product series and weight?
It has SM1X product type designation and weighs 45 g.
Is this a rigid or flexible accessory?
It is a rigid connection accessory.
Who should install this accessory?
Installation should be carried out by a competent person following Lovato’s instructions and applicable standards.
Safety note: Always isolate and lock off power before fitting. Confirm compatibility with SM1R breakers and BF26...38A contactors, and install strictly to Lovato documentation and relevant IEC/EN, UL and CSA requirements.
| Manufacturer Part Number | SM1X3241R |
|---|---|
| Manufacturer | Lovato |
| HS Code | 85362010 |
| Barcode | 8013975214206 |
