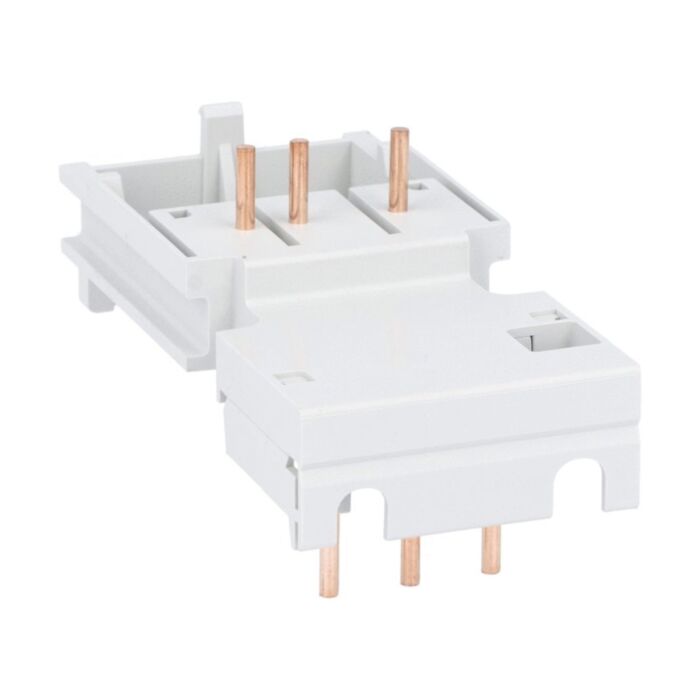

SM1X3142R - RIGID CONNECTIONS SM1P WITH BF09-25D/L

Why Choose the SM1X3142R?

The Lovato SM1X3142R is a rigid breaker–contactor connection accessory designed for SM1R motor protection breakers used with BF09…25D and BF09…25L contactors. Part of the SM1X range, this accessory provides a solid, fixed link between devices for dependable assembly. With a compact, lightweight build at 44 g, it integrates neatly in control panels where a defined, rigid interconnection is required.

Built to recognised standards, the SM1X3142R conforms to IEC/EN 60947-1 and IEC/EN 60947-5-1, plus UL508 and CSA C22.2 n° 14. It is listed with Sustainability certification. Use this rigid connection when a precise, direct link is required between an SM1R motor protection breaker and compatible BF09…25D or BF09…25L contactors in industrial control assemblies.

Key Benefits

• Rigid breaker–contactor link for SM1R motor protection breakers.
• Compatible with BF09…25D and BF09…25L contactors.
• Lightweight 44 g design aids compact panel layouts.
• Part of the SM1X accessory range for consistent matching.
• Conforms to IEC/EN 60947-1 and 60947-5-1 standards.
• UL508 and CSA C22.2 n° 14 compliance for international applications.
• Accessory type: rigid connections for dependable mechanical coupling.

Technical Specification

• Product type designation: SM1X
• Weight: 44 g

What’s Included

• SM1X3142R rigid breaker–contactor connection accessory
• Installation leaflet
• Manufacturer packaging

Applications

• Rigid linking of SM1R motor protection breakers to BF09…25D contactors
• Rigid linking of SM1R motor protection breakers to BF09…25L contactors
• Industrial control assemblies requiring fixed breaker–contactor connections
• Panel building where SM1R and BF09…25 series are specified

Safety note: Install and commission only by qualified personnel. Isolate power and follow Lovato documentation and applicable standards during assembly.
