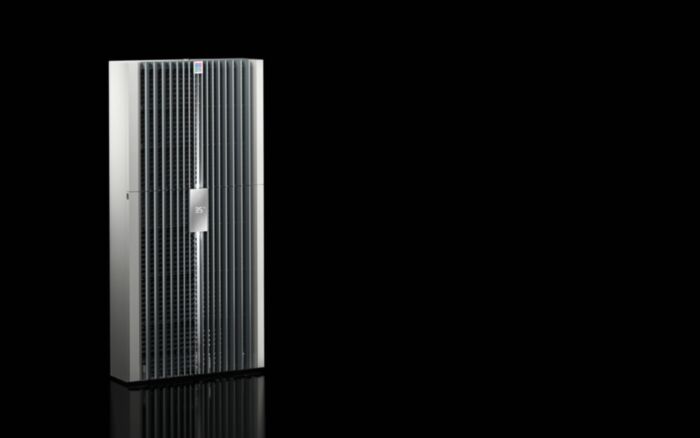

SK3184.800 Rittal Blue e+ S wall-mounted cooling unit, 1000 W, 110-240 V, 1~, 50/60 Hz

Why Choose the Rittal SK 3184.800 Blue e+ Wall-Mounted Cooling Unit?

The Rittal SK 3184.800 is a high-efficiency Blue e+ wall-mounted cooling unit designed to deliver reliable climate control for electrical enclosures and control cabinets. Engineered using advanced hybrid cooling technology, it combines compressor and heat pipe systems to maximise efficiency while maintaining precise temperature regulation.

Part of the innovative Rittal Blue e+ S range, this unit offers exceptional energy savings of up to 75% compared to conventional systems, helping reduce operating costs and carbon footprint. Its intelligent design also supports IoT integration and remote monitoring, making it ideal for modern industrial automation environments.

With a cooling capacity of up to 1.0 kW and multi-voltage compatibility, the SK 3184.800 is suitable for global applications requiring dependable enclosure cooling and long-term reliability.

Key Advantages

• High-efficiency Blue e+ hybrid cooling technology.
• Up to 75% energy savings compared to conventional cooling units.
• Multi-voltage capability for global deployment.
• Integrated IoT monitoring support for smart maintenance.
• Reliable cooling for industrial enclosures and control panels.
• Improves system uptime and reduces operating costs.

Key Features

• Cooling capacity: up to 1.0 kW.
• Airflow: approx. 680 m³/h internal and external circuits.
• Voltage range: 110 – 240 V AC, single phase.
• Hybrid cooling combining compressor and heat pipe.
• IP55 protection for internal circuit.
• Integrated electric condensate evaporation.
• Touch display and smart control interface.

Technical Specifications

• Manufacturer: Rittal
• Series: Blue e+ S Cooling Units
• Model: SK 3184.800
• Product type: Wall-mounted cooling unit
• Cooling output: 1.0 kW (L35 L35)
• Cooling output (high ambient): approx. 0.6 kW
• Rated voltage: 110 – 240 V AC
• Frequency: 50 / 60 Hz
• Power consumption: approx. 0.42 – 0.48 kW
• Air throughput: approx. 680 m³/h
• Protection rating: IP55 (internal circuit)
• Dimensions (W × H × D): 400 × 950 × 196 mm
• Mounting type: Wall-mounted
• Weight: approx. 26.5 kg
• Refrigerant: R-513A
• Operating temperature range: -20 °C to +60 °C

Advanced Cooling Performance with Blue e+

The SK 3184.800 uses hybrid cooling technology to intelligently switch between passive and active cooling modes. This reduces energy consumption while maintaining precise temperature control, even in fluctuating ambient conditions.

Its high airflow and efficient heat dissipation ensure that internal components remain within safe operating limits, reducing downtime and improving system reliability in demanding industrial applications.

Typical Applications

• Industrial control panels and automation systems.
• Power distribution and switchgear enclosures.
• Machine building and OEM installations.
• Data and network cabinets.
• Process control and manufacturing environments.
• High heat-load electrical enclosures.

Trusted by Industrial Engineers Worldwide

Rittal Blue e+ cooling units are widely trusted for delivering high-efficiency climate control, reducing energy costs and ensuring long-term reliability in industrial environments.
