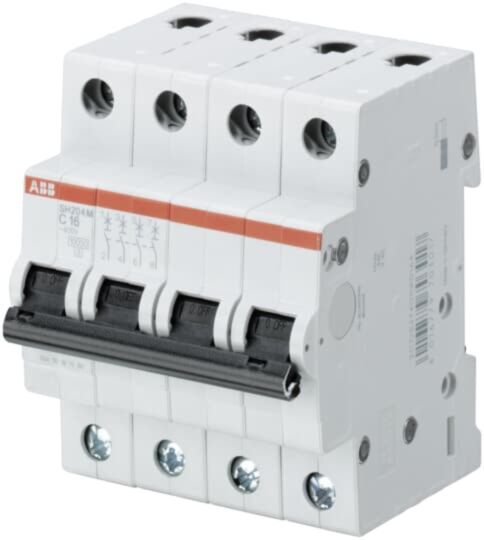

SH204M-C63 Miniature Circuit Breaker - 4P - C - 63 A
MPN: 2CDS274011R0634
Alt. SKU: SH204M-C63
Special Price
£153.85
£128.21
Regular Price
£205.14
Why Choose the SH204M-C63 [2CDS274011R0634]
SH204M-C63 Miniature Circuit Breaker - 4P - C - 63 A
Technical Specification
- Product Name: SH204M-C63 Miniature Circuit Breaker - 4 Pole, C Curve, 63 A.
- Number of Poles: 4P (Four Poles) with ON/OFF contact position indication.
- Rated Current: 63 Amperes.
- Dielectric Test Voltage: 2 kV, 50/60 Hz, 1 minute.
- Electrical Endurance: 10,000 AC cycles.
- Mechanical Endurance: 20,000 cycles.
- Terminal Type: Screw terminals, cage type.
- Connecting Capacity: Flexible 0.75–16 mm² with ferrule, Rigid up to 25 mm².
- Tightening Torque: 2 N·m.
- Installation Size: DIN 43880 standard size 1.
Trusted By Customers Worldwide
"Specified by UK panel builders for dependable control." Controls Engineer, UK
Frequently Asked Questions
What is the rated current of the SH204M-C63 Miniature Circuit Breaker?
The rated current is 63 Amperes.
How many poles does the SH204M-C63 have?
It has 4 poles (4P).
What is the connecting capacity for cables?
Flexible cables can connect from 0.75 to 16 mm² with ferrule, and rigid cables up to 25 mm².
What type of terminals does the SH204M-C63 use?
It uses screw terminals, cage type.
What is the tightening torque for the terminals?
The tightening torque is 2 N·m.
What is the installation size of the SH204M-C63?
It conforms to the DIN 43880 standard size 1.
What are the electrical endurance ratings?
The electrical endurance is rated for 10,000 AC cycles.
| Manufacturer Part Number | 2CDS274011R0634 |
|---|---|
| Height | 88mm |
| Width | 70mm |
| Depth | 69mm |
| Amperage | 63A |
| Number of Poles | 4 Pole |
| Trip Curve Type | C |
| Manufacturer | ABB |
| Alternative Product SKU | SH204M-C63 |
| Barcode | 4016779703079 |
