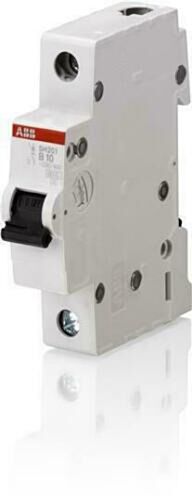

SH201C20 ABB 1 pole MCB for home consumer units type c 20amp 6ka
MPN: 2CDS211001R0204
Alt. SKU: SH201-C20
Special Price
£11.71
£9.76
Regular Price
£21.29
Why Choose the SH201-C20 [2CDS211001R0204]
Compact Home SH200 miniature circuit breakers are current limiting. They have two different tripping mechanisms, the delayed thermal tripping mechanism for overload protection and the electromechanic tripping mechanism for short circuit protection. They are available in different characteristics (B,C), configurations (1P,1P+N,2P,3P,3P+N,4P), breaking capacities (up to 6 kA at 230/400 V AC) and rated currents (up to 40 A). All MCBs of the product range SH200 comply with IEC/EN 60898-1, allowing the use for residential applications.
Technical Specification
- Function: Thermal and electromechanical tripping for overload and short circuit protection.
- Rated Current: Up to 40 A.
- Breaking Capacity: Up to 6 kA at 230/400 V AC.
- Number of Poles: 1P (single pole).
- Voltage Rating: Supports 230/400 V AC applications.
- Terminal Type: Screw terminals with cage connection.
- Connecting Capacity: Flexible 0.75–16 mm², rigid and stranded 0.75–25 mm² conductors.
- Mechanical Endurance: 20,000 operating cycles.
- Electrical Endurance: 20,000 AC cycles.
- Actuator Type: Toggle with ON/OFF indication, sealable.
Trusted By Customers Worldwide
"Specified by UK panel builders for dependable control." Controls Engineer, UK
Frequently Asked Questions
What are the tripping mechanisms used in the SH200 miniature circuit breakers?
The SH200 miniature circuit breakers utilise a delayed thermal tripping mechanism for overload protection and an electromechanical tripping mechanism for short circuit protection.
What is the maximum breaking capacity of the SH200 MCBs?
The SH200 MCBs have a breaking capacity of up to 6 kA at 230/400 V AC.
What are the available configurations for the SH200 circuit breakers?
The SH200 circuit breakers are available in configurations of 1P, 1P+N, 2P, 3P, 3P+N, and 4P.
What is the rated current for the SH200 MCBs?
The SH200 miniature circuit breakers have a rated current of up to 40 A.
What types of conductors can be connected to the SH200 MCBs?
The SH200 MCBs can connect flexible conductors of 0.75–16 mm² and rigid or stranded conductors of 0.75–25 mm².
What is the mechanical endurance of the SH200 circuit breakers?
The mechanical endurance of the SH200 circuit breakers is rated for 20,000 operating cycles.
Do the SH200 MCBs comply with any standards?
Yes, all MCBs in the SH200 range comply with IEC/EN 60898-1, suitable for residential applications. See the manufacturer's data sheet for standards and approvals.
| Manufacturer Part Number | 2CDS211001R0204 |
|---|---|
| Amperage | 20A |
| Number of Poles | 1 Pole |
| Trip Curve Type | Type B 10KA |
| Manufacturer | ABB |
| Alternative Product SKU | SH201-C20 |
| Barcode | 4016779630665 |
