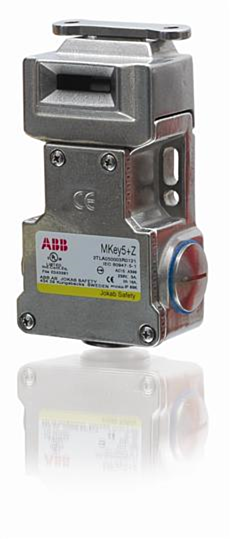

ABB mkey5+z Safety Interlock Switch, 2NC/1NO
MPN: 2TLA050003R0121
Alt. SKU: MKey5+Z
Special Price
£260.60
£217.17
Regular Price
£306.59
Why Choose the MKey5+Z [2TLA050003R0121]
Safety interlock switch, stainless steel body and head, 40N holding force. 2NO+1NC guard open. 3xM20 conduit entries. Delivered with standard key. MKey are mechanical safety switches used for monitoring doors and hatches. The switch is mounted on the frame and the actuator key on the moving part of the guard. All MKey models have a safe interlocking function. Some MKey models can be locked and depending on the locking signal they can be used either as process locks or safety locks (with a safe unlocking function). MKey switches are available in different material and sizes in order to meet the requirements of different applications.
Technical Specification
- Function: Safety interlock switch for monitoring doors and hatches.
- Contact Configuration: 2 Normally Closed (NC) + 1 Normally Open (NO) contacts.
- Holding Force: 40N for secure locking.
- Material: Stainless steel body and head for durability.
- Conduit Entries: 3 x M20 entries for flexible wiring options.
- Standard Key: Supplied with standard actuator key.
- Locking Capability: Mechanical safety lock with safe interlocking and unlocking functions.
- Weight: 0.453 kg, compact and robust.
Trusted By Customers Worldwide
"Specified by UK panel builders for dependable control." Controls Engineer, UK
Frequently Asked Questions
What is the function of the MKey safety interlock switch?
The MKey safety interlock switch is designed for monitoring doors and hatches, ensuring safe operation through interlocking mechanisms.
What is the contact configuration of the switch?
The switch features a contact configuration of 2 Normally Closed (NC) and 1 Normally Open (NO) contacts.
What is the holding force of the switch?
The MKey safety interlock switch has a holding force of 40N, providing secure locking.
How is the switch mounted?
The switch is mounted on the frame, while the actuator key is attached to the moving part of the guard.
What materials are used in the construction of the switch?
The switch features a stainless steel body and head, ensuring durability in various applications.
What are the conduit entry options for wiring?
The switch has 3 x M20 conduit entries, allowing for flexible wiring options.
Does the switch have locking capabilities?
Yes, the MKey switch includes a mechanical safety lock with safe interlocking and unlocking functions.
| Manufacturer | ABB |
|---|---|
| Barcode | 7350024466348 |
| Inbuilt Aux | 2 N/C 1N/O |
| Alternative Product SKU | MKey5+Z |
| Manufacturer Part Number | 2TLA050003R0121 |
| Product Lead Time | Expected delivery up to 5/7 days |
