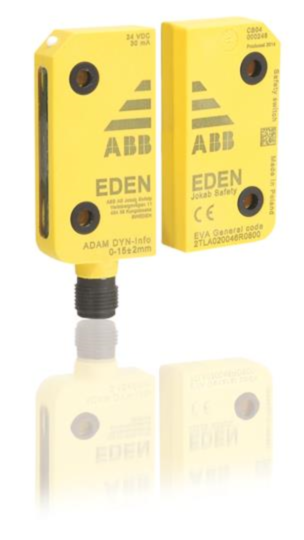

ABB Eva actuator with unique code
MPN: 2TLA020046R0900
Alt. SKU: Eva Unique code
Special Price
£49.07
£40.89
Regular Price
£57.73
Why Choose the Eva Unique code [2TLA020046R0900]
Eden is a non-contact safety sensor used as interlocking device for e.g. doors and safe position monitoring. Eva actuator for use with Adam DYN and Adam OSSD sensors. With Eva unique Code, the pair forms a high level coded non-contact safety sensor. Four pieces of DA 2B spacer rings are included. Adam senses the presence of Eva without mechanical contact and therefore without any wear. The compact size of Eden and its 360°mounting possibility make it easy to use in most applications. Eden is UL approved for use in US and Canada.
Technical Specification
- Function: Non-contact safety sensor for door interlocking and safe position monitoring.
- Operating Distance (Sn): 15 mm.
- Contact Configuration: High level coded non-contact sensor with Eva actuator.
- Durability: No mechanical wear due to contactless sensing.
- Mounting: Compact design with 360° mounting capability.
- Protection Rating: UL/CSA enclosure type 4X (water and corrosion resistant).
- Approval: UL approved for use in US and Canada.
- Weight: 0.026 kg.
- Accessories: Includes four DA 2B spacer rings.
Trusted By Customers Worldwide
"Specified by UK panel builders for dependable control." Controls Engineer, UK
Frequently Asked Questions
What is the primary function of the Eden sensor?
The Eden sensor is a non-contact safety sensor used for door interlocking and safe position monitoring.
What is the operating distance of the Eden sensor?
The operating distance (S n) is 15 mm.
Can the Eden sensor be mounted in any orientation?
Yes, the compact design allows for 360° mounting capability.
What type of actuator is compatible with the Eden sensor?
The Eden sensor is compatible with the Eva actuator, which forms a high-level coded non-contact safety sensor.
What is the protection rating of the Eden sensor?
The Eden sensor has a UL/CSA enclosure type 4X rating, making it water and corrosion resistant.
Is the Eden sensor approved for use in specific regions?
Yes, the Eden sensor is UL approved for use in the US and Canada.
What accessories are included with the Eden sensor?
The Eden sensor includes four DA 2B spacer rings.
| Manufacturer | ABB |
|---|---|
| HS Code | 85365080 |
| Barcode | 7350024480405 |
| Country of Manufacture | Poland |
| Alternative Product SKU | Eva Unique code |
| Manufacturer Part Number | 2TLA020046R0900 |
