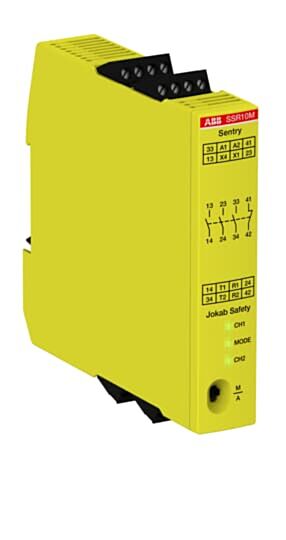

ABB SENTRY SSR10M 85-265AC 120-275DC 3no 1nc
MPN: 2TLA010050R0100
Alt. SKU: SENTRY SSR10M
Special Price
£204.20
£170.17
Regular Price
£240.24
Why Choose the Sentry SSR10M [2TLA010050R0100]
Sentry SSR10M Safety relay with relay outputs 3NO+1NC, 85-265 VAC/120-375 VDC supply voltage and screw terminals. For monitoring of safety devices with contacts, 2 equivalent channels. Manual or automatic reset selectable by switch on front. Sentry safety relays cover various types of safety applications up to PLe / SIL3. Basic models provide reliable supervision of simpler safety functions, while universal models provide advanced features and high flexibility. Models with display offer preset configurations and extensive information to further simplify troubleshooting. Additional variants offer a high accuracy timer function of ± 1% and an adjustable time setting range from 0-999 s. High output current capacity of up to 6 A can save the use of an intermediary contactor. Multi-reset allows up to 10 safety relays connected to one reset light-button. All models are available with detachable push-in or screw terminals. Terminals and coding kit to mark removed terminals are available as accessories.
Technical Specification
- Function: Safety relay for monitoring safety devices with 3NO+1NC relay outputs.
- Supply Voltage: 85-265 VAC / 120-375 VDC.
- Rated Operational Current: 5 A AC-15, 6 A DC-13 outputs.
- Contact Configuration: 3 Normally Open + 1 Normally Closed.
- Reset Mode: Manual or automatic, selectable via front switch.
- Protection Rating: IP20.
- Terminal Type: Screw terminals with wire size range 0.2–3.3 mm² (solid, stranded, ferrule).
- Mounting: DIN Rail TH35-15 and TH35-7.5 per IEC 60715.
- Tightening Torque: 0.7 N·m.
- Standards Compliance: ISO 13849 for safety applications.
Trusted By Customers Worldwide
"Specified by UK panel builders for dependable control." Controls Engineer, UK
Frequently Asked Questions
What is the supply voltage range for the Sentry SSR10M safety relay?
The supply voltage range is 85-265 VAC and 120-375 VDC.
What is the rated operational current of the relay outputs?
The rated operational current is 5 A AC-15 and 6 A DC-13.
How many relay outputs does the Sentry SSR10M have?
The Sentry SSR10M has 3 Normally Open and 1 Normally Closed relay outputs.
What type of terminals does the Sentry SSR10M use?
The relay uses screw terminals with a wire size range of 0.2–3.3 mm² (solid, stranded, ferrule).
What is the mounting method for the Sentry SSR10M?
The relay is designed for DIN Rail mounting, compatible with TH35-15 and TH35-7.5 per IEC 60715.
Can the reset mode be configured?
Yes, the reset mode can be set to manual or automatic via a switch on the front.
What standards does the Sentry SSR10M comply with?
See the manufacturer's data sheet for standards and approvals.
| Manufacturer Part Number | 2TLA010050R0100 |
|---|---|
| Barcode | 7350024483291 |
| HS Code | 85364900 |
| Country of Manufacture | Germany |
| Manufacturer | ABB |
| Alternative Product SKU | SENTRY SSR10M |
