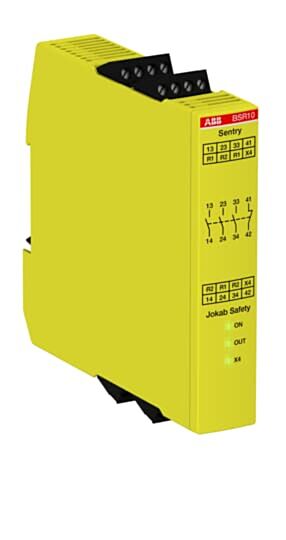

ABB SENTRY BSR10 24VDC 3no 1nc output
MPN: 2TLA010040R0000
Alt. SKU: SENTRY BSR10
Special Price
£131.47
£109.56
Regular Price
£154.67
Why Choose the Sentry BSR10 [2TLA010040R0000]
Sentry BSR10 Safety relay and expansion relay with relay outputs 3NO+1NC, +24 VDC supply voltage and screw terminals. For monitoring of safety devices, such as emergency stops, directly in the voltage supply circuit of the relay. Also suitable as expansion relay for a safety relay/ safety PLC, in order to increase the number of safe outputs. Sentry safety relays cover various types of safety applications up to PLe / SIL3. Basic models provide reliable supervision of simpler safety functions, while universal models provide advanced features and high flexibility. Models with display offer preset configurations and extensive information to further simplify troubleshooting. Additional variants offer a high accuracy timer function of ± 1% and an adjustable time setting range from 0-999 s. High output current capacity of up to 6 A can save the use of an intermediary contactor. Multi-reset allows up to 10 safety relays connected to one reset light-button. All models are available with detachable push-in or screw terminals. Terminals and coding kit to mark removed terminals are available as accessories.
Technical Specification
- Function: Expansion relay with no monitoring of two channel fault, start/test input.
- Contact Configuration: 3 Normally Open (NO) + 1 Normally Closed (NC) relay outputs.
- Supply Voltage: 24 V DC.
- Rated Operational Current: 5 A (AC-15), 6 A (DC-13).
- Degree of Protection: IP20.
- Terminal Type: Screw terminals with wire size range 0.2–3.3 mm² (solid, flexible with ferrule, crimped pin).
- Tightening Torque: 0.7 N·m.
- Mounting: DIN Rail TH35-15 and TH35-7.5, per IEC 60715.
- Weight: 0.19 kg.
Trusted By Customers Worldwide
"Specified by UK panel builders for dependable control." Controls Engineer, UK
Frequently Asked Questions
What is the contact configuration of the Sentry BSR10 safety relay?
The Sentry BSR10 features a contact configuration of 3 Normally Open (NO) and 1 Normally Closed (NC) relay outputs.
What is the supply voltage required for the Sentry BSR10?
The Sentry BSR10 requires a supply voltage of 24 V DC.
What is the maximum output current capacity of the Sentry BSR10?
The maximum output current capacity is 6 A (DC-13) and 5 A (AC-15).
How can the Sentry BSR10 be mounted?
The Sentry BSR10 can be mounted on DIN Rail TH35-15 and TH35-7.5, in accordance with IEC 60715.
What is the degree of protection for the Sentry BSR10?
The Sentry BSR10 has a degree of protection rated at IP20.
What is the wire size range for the screw terminals?
The screw terminals accommodate wire sizes ranging from 0.2 to 3.3 mm² (solid, flexible with ferrule, crimped pin).
Are there any specific standards or approvals for the Sentry BSR10?
See the manufacturer's data sheet for standards and approvals.
| Manufacturer Part Number | 2TLA010040R0000 |
|---|---|
| Barcode | 7350024483253 |
| HS Code | 85364900 |
| Country of Manufacture | Germany |
| Manufacturer | ABB |
| Alternative Product SKU | SENTRY BSR10 |
