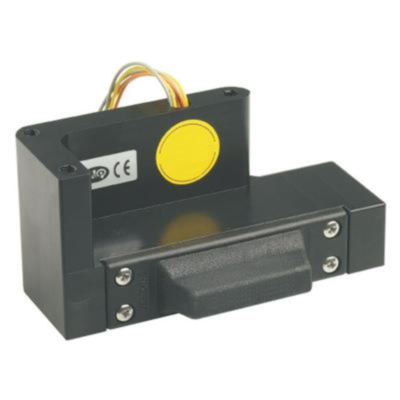

ABB jshd4h2a 0,15m Enabling Switch
MPN: 2TLA020002R0200
Alt. SKU: JSHD4H2A 0.15m
Special Price
£352.82
£294.02
Regular Price
£415.08
Why Choose the JSHD4H2A 0.15m [2TLA020002R0200]
JSHD4H2A 0.15m is a three-position device for external panel mounting with 6 leads, each 150mm long, and mounting holes up left. Three-position devices are used to allow a limited movement of the machine when the operator is in the dangerous area, for example during troubleshooting, test running and programming.
Technical Specification
- Product Name: JSHD4H2A 0.15m.
- Function: Three-position device for external panel mounting, allowing limited machine movement in hazardous areas.
- Connection Configuration: 6 leads, each 150 mm long.
- Number of Contacts CO (Changeover): 2.
- Rated Operational Current (DC-12): 0.02 A at 24 V.
- Weight: 0.154 kg.
- Mounting: Mounting holes located at top left.
- Communication Interface: Contacts.
Trusted By Customers Worldwide
"Specified by UK panel builders for dependable control." Controls Engineer, UK
Frequently Asked Questions
What is the function of the JSHD4H2A 0.15m device?
The JSHD4H2A 0.15m is a three-position device designed for external panel mounting, allowing limited movement of the machine in hazardous areas during troubleshooting, test running, and programming.
How many leads does the JSHD4H2A 0.15m have?
The device has 6 leads, each measuring 150 mm in length.
What is the rated operational current of the JSHD4H2A 0.15m?
The rated operational current is 0.02 A at 24 V (DC-12).
Where are the mounting holes located on the JSHD4H2A 0.15m?
The mounting holes are located at the top left of the device.
What type of contacts does the JSHD4H2A 0.15m have?
The device features 2 changeover contacts.
What is the weight of the JSHD4H2A 0.15m?
The weight of the device is 0.154 kg.
What standards and approvals does the JSHD4H2A 0.15m conform to?
See the manufacturer's data sheet for standards and approvals.
| Manufacturer | ABB |
|---|---|
| HS Code | 85365019 |
| Barcode | 7350024454833 |
| Country of Manufacture | Sweden |
| Alternative Product SKU | JSHD4H2A 0.15m |
| Manufacturer Part Number | 2TLA020002R0200 |
