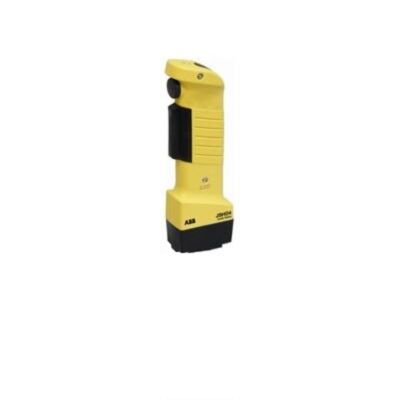

ABB jshd4-3-ah Enabling Switch
MPN: 2TLA019995R2000
Alt. SKU: JSHD4-3-AH
Special Price
£456.61
£380.51
Regular Price
£537.19
Why Choose the JSHD4-3-AH [2TLA019995R2000]
The JSHD4-3-AH is an ergonomic three-position device which top part has LEDs and no extra button, and which bottom part is equipped with a cable gland and a PCB with 10 screw connections. Three-position devices are used to allow a limited movement of the machine when the operator is in the dangerous area, for example during troubleshooting, test running and programming.
Technical Specification
- Function: Ergonomic three-position device with integrated LEDs and cable gland connection.
- Rated Operational Voltage: 24 V DC.
- Maximum Switching Current: 0.02 mA (Main Circuit).
- Contact Configuration: 2 changeover contacts (CO), no normally open (NO) or normally closed (NC) contacts.
- Connection Type: Cable gland and PCB with 10 screw connections.
- Mechanical Service Life: 1 million cycles top to middle, 100,000 cycles middle to bottom.
- Operating Force: Approx. 15 N (ON), 45 N (OFF), 2.5 N (top/front pushbutton).
- Enclosure Type (UL/CSA): 1 (basic protection).
Trusted By Customers Worldwide
"Specified by UK panel builders for dependable control." Controls Engineer, UK
Frequently Asked Questions
What is the function of the JSHD4-3-AH device?
The JSHD4-3-AH is an ergonomic three-position device designed to allow limited movement of machinery while the operator is in a dangerous area, useful for troubleshooting, test running, and programming.
What is the rated operational voltage of the JSHD4-3-AH?
The rated operational voltage is 24 V DC.
What is the maximum switching current for the main circuit?
The maximum switching current is 0.02 mA.
How many contacts does the JSHD4-3-AH have?
The device features 2 changeover contacts (CO) and does not include normally open (NO) or normally closed (NC) contacts.
What type of connections does the JSHD4-3-AH support?
It supports a cable gland connection and a PCB with 10 screw connections.
What is the mechanical service life of the JSHD4-3-AH?
The mechanical service life is rated at 1 million cycles from top to middle and 100,000 cycles from middle to bottom.
What is the operating force required for the JSHD4-3-AH?
The operating force is approximately 15 N (ON), 45 N (OFF), and 2.5 N (top/front pushbutton).
| Manufacturer | ABB |
|---|---|
| HS Code | 85365019 |
| Barcode | 7350024453546 |
| Country of Manufacture | Sweden |
| Alternative Product SKU | JSHD4-3-AH |
| Manufacturer Part Number | 2TLA019995R2000 |
