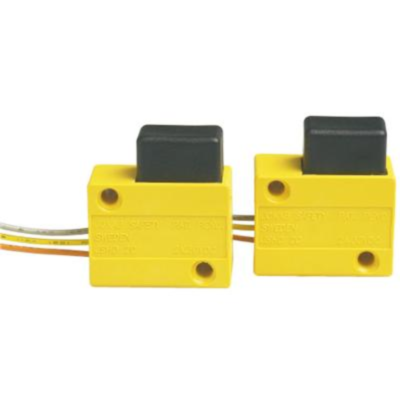

ABB jshd2c type f Enabling Switch
MPN: 2TLA020001R1400
Alt. SKU: JSHD2C type F
Special Price
£67.84
£56.53
Regular Price
£79.80
Why Choose the JSHD2C type F [2TLA020001R1400]
The JSHD2C Type F is a three-position pushbutton with gold plated contacts and 3 leads, each 1250 mm. The force needed to actuate the push-button from middle to bottom is 20 N. Three-position pushbuttons are usually used in pair in a three-position device.
Technical Specification
- Model: JSHD2C Type F three-position pushbutton.
- Contact Configuration: 1 Normally Closed (NC) and 1 Normally Open (NO) contact.
- Electrical Rating: 24 V DC, 0.02 A (DC-12).
- Connection: 3 leads, each 1250 mm in length.
- Operating Force: 20 N from middle to bottom position.
- Mechanical Life: Over 1 million cycles (top to middle), 100,000 cycles (middle to bottom).
- Contact Material: Gold plated for reliable low-voltage switching.
- Weight: 10 g (0.01 kg).
Trusted By Customers Worldwide
"Specified by UK panel builders for dependable control." Controls Engineer, UK
Frequently Asked Questions
What is the electrical rating of the JSHD2C Type F pushbutton?
The electrical rating is 24 V DC at 0.02 A (DC-12).
What is the contact configuration of this pushbutton?
The contact configuration includes 1 Normally Closed (NC) and 1 Normally Open (NO) contact.
What is the operating force required to actuate the pushbutton?
The operating force required is 20 N from the middle to the bottom position.
What is the mechanical life of the JSHD2C Type F pushbutton?
The mechanical life is over 1 million cycles from top to middle and 100,000 cycles from middle to bottom.
What is the length of the leads on this pushbutton?
Each lead is 1250 mm in length.
What material are the contacts made of?
The contacts are gold plated for reliable low-voltage switching.
Are there any specific standards or approvals for this product?
See the manufacturer's data sheet for standards and approvals.
| Manufacturer | ABB |
|---|---|
| HS Code | 85365080 |
| Barcode | 7350024456868 |
| Country of Manufacture | Sweden |
| Alternative Product SKU | JSHD2C type F |
| Manufacturer Part Number | 2TLA020001R1400 |
